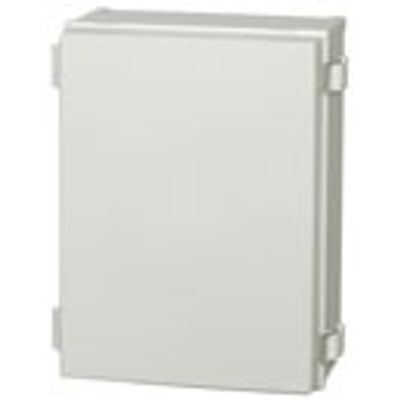

Fibox - Model UL CAB PC 604022 G -Polycarbonate Enclosure
FromFibox Enclosures
Including: Cabinet base. door with PUR gasket. latches. screws for mounting plate/DIN-rail and corner plugs.
More about this product— External link
Most popular related searches
- Part #:8143370
- Dimensions:23.6 x 15.7 x 8.7
- Ratings:UL Type Type 1, 4, 4X, 12, and 13:IP65; IK08
- Product
- Product nr: 8143370
- Description: 23.6 x 15.7 x 8.7 inch polycarbonate enclosure with an opaque door, and latches on the long side
- EAN: 8143370
- SSTL number: 3424126
- Electric No. Denmark: 8212020281
- Electric No. Sweden: 2539983
- ETIM:
- Dimensions
- Height (inch): 23.6
- Width (inch): 15.7
- Depth (inch): 8.7
- Height (mm): 600
- Width (mm): 400
- Depth (mm): 220
- Materials
- Material: Polycarbonate
- Base color: RAL 7035 -light grey
- Cover color: RAL 7035 -light grey
- Gasket material: Polyurethane
- Temperatures
- Temperature °F (continuous): -40 … 175
- Temperature °C (continuous): -40 … 80
- Ratings
- UL/cUL Type: Type 1, 4, 4X, 12, and 13
- Ingress Protection (EN 60529): IP65
- Impact Resistance (EN 62262): IK08
- Electrical insulation: Totally insulated
- Halogen free (DIN/VDE 0472, Part 815): Yes
- UV resistance: UL 508
- Flammability Rating: UL94-5VA (f1)/ Cover: UL94-V0 (f1)
- Glow Wire Test (IEC 60695): 960 °C
