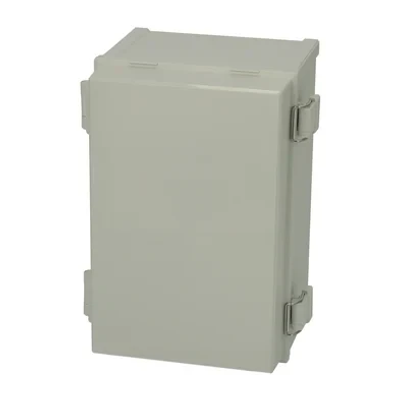

Fibox - Model UL CAB PC 302018 G -Polycarbonate Enclosures

• Part #:8143330
• Dimensions:11.8 x 7.9 x 7.1
• Ratings:UL Type Type 1, 4, 4X, 12, and 13:IP65; IK08

Product

• Description: 11.8 x 7.9 x 7.1 inch polycar: onate enclosure with an opaque door, and latches on the long side
• Electric No. Denmark: 3424101
• Electric No. Sweden: 8212020207

Dimensions

• Height (inch): 11.8
• Width (inch): 7.9
• Depth (inch): 7.1
• Height (mm): 300
• Width (mm): 200
• Depth (mm): 180

Materials

• Material: Polycar: onate : ase color: RAL 7035 -light grey
• Cover color: RAL 7035 -light grey
• Gasket material: Polyurethane

Temperatures

• Temperature °F (continuous): -40 … 175
• Temperature °C (continuous): -40 … 80

Ratings

• UL/cUL Type: Type 1, 4, 4X, 12, and 13
• Ingress Protection (EN 60529): IP65
• Impact Resistance (EN 62262):  IK08
• Electrical insulation: Totally insulated
• Halogen free (DIN/VDE 0472, Part 815): Yes
• UV resistance:  UL 508
• Flamma: ility Rating: UL94-5VA (f1)/ Cover: UL94-V0 (f1)
• Glow Wire Test (IEC 60695): 960 °C
