Shanghai Filterbag Factory Co., Ltd.

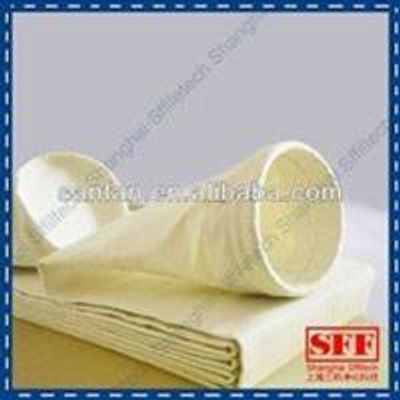

SFF - Polyester Filter Bag W/O

FromShanghai Filterbag Factory Co., Ltd.

Breaking Elongation is less than 20% for MD and 40% for CMD,low dry shrinkage, can work well in the 130 deg C. the material is cheaper than other material, so widely used in a lot of bag house system.

Most popular related searches

Material： Antistatic polyester filter bag are made of 100% filament polyester fiber with water and oil repellent.

Feature:

Operation temperature 150 Deg c,
the max surge is 150 deg c.
good anti-acid, good anti-alkali ,good hydrolysis stability
Mean Air Permeability: 10-15 m3/m2/[email protected]

Avaiable Finish: singed,calendar,PTFE membrane,W/O

Specs And Features
Material: Polyester/Polyester Scrim
Thickness: 1.9
Weight(g/sqm): 500: Density(g/cm³): 1.38
Air Permeability(m³/m²/min): 12~16
Warp Tensile Strength
(N/5x20cm): >1000
Weft Tensile Strenght
(N/5x20cm): >1300
Moisture Regain(20℃
And 65% r. humidity): 0.10%
Warp Elongation(%): <30
Weft Elongation(%): <50
Support Combustion: Yes
Continuous Dry Heat
Operation(℃): 135
Continuous Moist Heat
Operation(℃): 94
Max Short Dry Heat
Surge(Short Term)(℃): 150
Biological(Mildew, Bacteria): fair
Alkalis: fair: Mineral Acids: fair
Organic Acids: fair
Oxidising Agents: good
Organic Solvents: good
Finishing: Singeing-calendering-water and oil proof
Product Applications: Chemical/ Steel/Waste Incineration/Thermoelectricity/Construction Material
Usage: Air Filter
Type: Filter Felt

Specialized in supplying
Needle puched felt 2. Woven filtration fabric 3. Filter bags 4. Filter cages 5. Filter tubing automatic production line

SFF - Polyester Filter Bag W/O

Features

Technical Data
