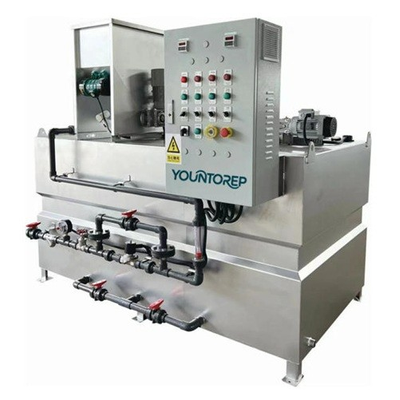

Yountorep - Model PPU -Polymer Preparation Unit
Automatic polymer preparation unit is widely used in municipal water treatment and water sludge treatment by auxiliary equipment. It complete the polymer compounding and mixing continuously and efficiently to obtain homogeneous active polymer solution. It includes three thanks: mixing tank, maturation tank, and service tank. Low-speed stirrers improve the evenness of the solution.
Polymer Preparation Unit is controlled by the electrical panel, the Powder Dosing system can run in Automatic or manual mode. In Automatic cycle, when the level of the solution is low, and the chemical dosing unit rotary sensor of the powder detect a full hopper, the water solenoid valve is activated and the powder feeding system starts, leading to pre-mixing in a cyclonic movement before entering the first mixing tank.

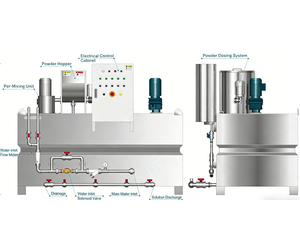

The Flocculant dosing system tank is divided into three compartment: mixing tank, maturation tank, and service tank. Each one has its own mixing device, to assure total dissolution of the chemical powder.
The powder dosing system mixers are in continuous stirring action in order to assure the polymer dosing homogenous solution before delivery. The chemical dosing or polymer pumping system is easily connected to the chemical dosing unit, with special protection from dry run. The polymer dosing system provided continuous ready solution.
