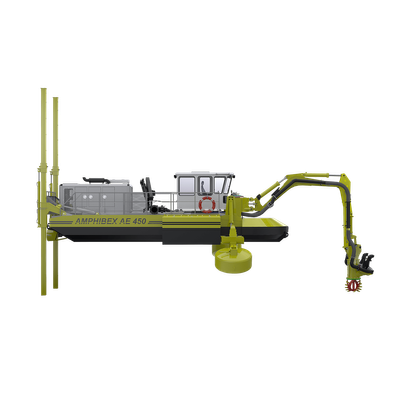

Amphibex - Model AE450 -Pond Dredger
Like its subordinate, our AE450 is the ideal dredger for all kinds of marine and shoreline works. With the same size and tonnage as the Amphibex AE400, the AE450 offers better depth of excavation, and superior pumping capacity to perform even more demanding tasks, even in the most restrained areas and bodies of water such as pond dredging operations. Surpassing other dredgers in its class, our AE450 is known for its performance and reliability in all types of environments.
AE450 IN SIZE
With a total length of 10.85 meters, the AE450 is still the same as the 400 in weight and dimensions. It also totals a working weight of approximately 22 metric tons, making it easy to transport.
PUMPING CAPACITY
The AE450 offers almost the same pumping capacity as the 400 model with a 10 inches diameter output. Perfect for pond dredging or where the sediment content is higher.
EXCAVATING REACH
Perfect to execute works in smaller bodies of water, the AE450 offers an excavation depth of 6.5 meters, always on a rotation axis of 170 degrees.
GENERAL DESCRIPTION
- Max. length: 10.85 m (35’ 7″)
- Working weight: (approx.) 22 metric tons (24.25 tons)
- Haulage distance: 12.85 m (42’ 2″)
- Haulage Width: 3.5 m (11’ 6″)
- Haulage Height: 3.2 m (10’ 6″)
- Speed: (approx.) 5 to 8 knots
ELECTRICAL SYSTEM
- 12 OR 24 Volts
- Batteries (2): 1000 A
HYDRAULIC SYSTEM
- Maximum operating pressure: 450 bar
- Hydraulic system capacity: 500 L (132.09 Gal.)
- (hydraulic oil made with a biodegradable vegetable base)
ENGINE
- Caterpillar C9 Acert
- Cylinders: 6
- Maximum power: 275-375 bhp
- Max. torque: 375 bhp: (1230 lb-ft) -1225 N.m. at 1400 rpm
- Air compressor tu/flo: 501-13 ft3/min.
- Fuel tank: 1200 L
EXCAVATOR
- Excavation radius: 6.6 m (21’7″) to 7.86 m (25’ 9″) on 170°
- Excavation Depth (with telescopic indicator): 6.5 m (21’ 4″)
- Power of wrenching scoop: according to the selected option
- Power of attack excavator: according to the selected option
PUMPING CAPACITY
- In Gallons per Minute (GPM): 4250
- Output Diameter: 10 inches
STANDARD EQUIPMENT
- Quick attach buckets and accessories; 500 L bucket (0.6 cubic yard)
- One-piece hull, corrosion resistant, divided into 9 sealed compartments
- Two rear stabilizers, equipped with hydraulically tilting cylinders. Depth control by means of hydraulic cylinder / mechanical control
- Two front stabilizers with detachable floats and removable spuds
- Direction and hydraulic height controllers propulsion system
- Dry powder extinguisher: one 5 kg (10 lbs.)
- Standard excavator Arm with a horizontal pump-shredder bucket and hydraulic pumping system – 2 pumps, maximum capacity of 2 X 167 L (2 X 43 Gal)/second
- Discharge line located under cab / Output connection SAE250 (10”)
- Fast accessory attachment
- Rescue equipment
- Heating system
- Air-conditioning
OPTIONAL EQUIPMENT
- Discharge spout for side casting
- 3 m (9’ 10″) Rake
- 250 mm (10″) X 2 m (6′) discharge pipe, aluminum assembly, SAE 250 (10”) for connection to the floating conduit
- Navigation lights, folding mast
- Winch
- Crane
- Tool box
- 800 L (1 cubic yard) bucket
