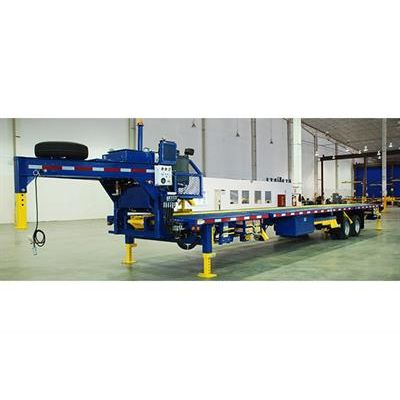

Forum - Model Little Tripper -Portable Catwalks
Forum’s newly redesigned Little Tripper™ portable catwalks support pipe pickup and laydown, efficiently delivering tubulars to the rig floor and back on well service and land rigs. Since these versatile units can accommodate working platforms from four to 40 feet, they support traditional operations for well servicing, casing and tubing running services and in snubbing-assisted completions in shale drill-outs and workovers. Available in both trailer-mounted and skid-mounted versions, they can handle tubulars up to 45’ in length and be fully operational in only a few minutes.
Most popular related searches
- Removes critical operations personnel safely away from all hazard zones
- Field-configurable to fit any installation from 4 to 40-foot delivery requirement
- Accommodation for all heights of pipe racks, including stacked rows
- No rig power or interface required
- V-door not required
- Tubular delivery up to 45 feet in length
- Standard onboard hydraulic controls with one wired (100-foot) remote control unit
- Robust, adjustable delivery height system
- Self-contained, integrated tier 4 diesel hydraulic-powered unit
- Trough skate to push and receive tubulars along the full length of the trough
- One each 10-foot extension (28-foot trough height)
- Interlocked trough kickers to prevent inadvertent operation when trough moves from home position
- Hydraulically deployed stabilizing system
- Hydraulically synchronized indexers and kickers
- Three work lights
- Quick-exchange interlocking trough extensions
- Wireless controller
- Additional 10-foot trough extension (to reach 33 feet)
- Extended reach to 40 feet
- Cold weather operations package
- Cold weather storage package
- Desert package
- Power Swivel Assist Feature — includes controls integration of a mechanical arm to provide backup to the power swivel thread makeup in the trough
