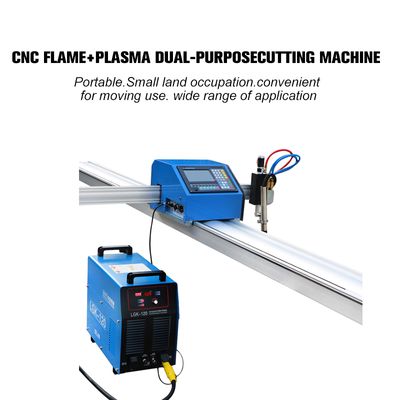

Gusheng - Model 1530 -PORTABLE CNC PLASMA CUTTING MACHINE

Portable CNC plasma cutting machine can be programmed to cut any plane shape part, functions are same as gantry CNC cutting machine,but much smaller landing occupation and more convenient for moving, it is simple installation and operation.It is directly perceived and very easy to learn(provide one to one teaching). Applicable materials: Mild steel ,carbon steel, stainless steel, aluminum, copper and other non-ferrous metal. Advantages: 1. Small landing occupation,Light weight, easy installation and operation. 2. Flame cutting and plasma cutting dual function. 3. High precision, fast speed, narrow kerf width, minimum heat affected zone, the cutting face smooth without burr. Technical date sheet: Model number :TPL-1525/1530/1560 Cutting range:1500*2500 mm(3000mm/6000mm) Cutting thickness:Flame 5-100mm(plasma cutting thickness deponds on plasma Amp) Cutting speed:2000-6000mm/minute Accuracy: 0.2 mm Working voltage: AC 220/380±10% 50HZ Rated power: 300W
