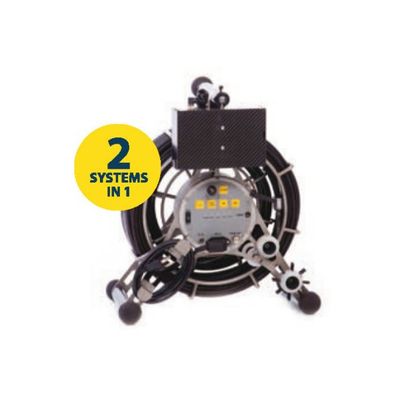

MinCam - Model Duo30 -Portable Double Camera Inspection Systems

• Includes 2 Separate Push Rod Systems:

Outer Reel: 1.14 in. Camera and 98ft. X .217 In. Push Rod

Inner Reel:  .51 in. Camera and 49ft. X .16 In. Push/Pull Cable

• Stainless Steel And Carbon Fiber Frame Construction
• AC and Internal Lithium Ion Battery Power
• 5.6 in. High-Resolution LCD Monitor Display
• Digital Storage Of Video and .Bmp Images
• Removable SD Card (32 GB Max.)
• Integrated Distance Counter, BNC Video Out (PAL)
• Includes 5 Piece Offset Device Kit
• Weight: 18 Lbs.
• Dimensions: 17 in. L X 6 in. W X 19 in. H
• Optional Accessories: Text Generation, Location Transmitter, Roller Skids, 4 Different Diameter Camera Heads

(text generation and location transmitter ‘sonde’ sold separately and must be purchased with original system at time of order)

• Text annotation transcribes your inspection notes (serial numbers, dates, condition, location etc.). allowing you to save time without the need to retype hand written information.
• Stainless steel and carbon fiber construction provides a strong, lightweight and corrosion resistant frame. This ensures long life & contributes to the portability of the pipe camera rental system.
• Interchangeable Camera Heads provide the best camera and LED light output for large and small diameter applications. This makes inspection of multiple applications possible.
• A removable SD Card records still images and video for later review and easy transfer to a PC for reporting or sharing via email.
• Adjustable LED lighting allows adjustment of the image in extremely dark and highly reflective areas. This provides the best image for inspecting a variety of applications.
• Removable high resolution TFT display is the perfect combination of portability and high resolution. The LCD can be removed and used with multiple pipe camera reels.
• Optional sonde locator allows the exact detection of the camera head to isolate damage in a line for precise corrective action.
• Meter counter displays length of push rod that is extended to assist in determining the location of damage within a line.
• Adjustable spring tension allows the camera head to be set in a variety of stiffness settings. This is superior to fixed springs on other pipe camera systems. The adjustable spring can make going around 90 degree bends or “P” traps easier.
• Reversible push rod cable allows the interior and less worn portion of the cable to be placed at the camera head and double the life of the push rod cable.
• Short cylindrical length of the camera heads allows the pipe camera to more easily traverses 90-degree bends and allows inspection of smaller diameter pipelines than other designs.
• Sapphire glass protects the objective lens for maximum durability to provide long life to the pipe camera system.
• Quick-change camera heads require no tools and are easily changed out in the field to save time.

Includes:

• KK13 camera with 15m push/pull cable
• KK29 camera with 30m 5.5mm rod
• 5.6” TFT LCD monitor
• video with audio recording to SD card
• image capture to SD card (32GB max.)
• BNC video output (PAL)
• DC input jack
• internal 2.5 hr. lithium ion battery
• integral distance counter
• ‘dual’ reel, stainless steel and carbon fiber frame: 17”l x 9”w x 19”h
• Weight: 18 lbs.
• includes 3 piece offset device kit

(text generation and location transmitter ‘sonde’ sold separately and must be purchased with original system at time of order)

Accessories Placed at Time of Order:

Sonde, 512H or 33kH – $1,100

• Includes transimitter embedded in camera and PCB mount: 512H or 33kH

Text Generator - $1,600

• Includes keyboard and PCB mount with jack

TFTC 5.6 – $2,200

• 5.6″ LCD with image capture and video recording to SD card

Meter/Distance Counter – $1,300

• Embedded counter on PCB and on screen display

Battery – $600

• Spare Lithium ion battery, 2+ hours
