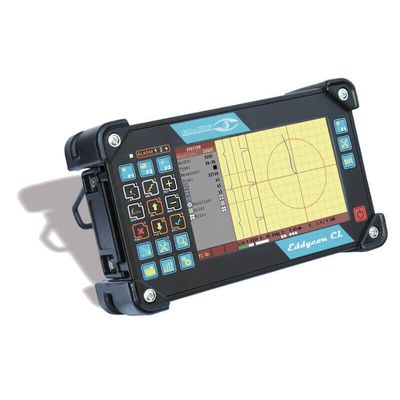

Eddycon - Model CL -Portable Eddy Current Flaw Detector
The EDDYCON CL is the latest eddy current instrument in our family. It is furnished with bright and large 7.2” display and combines the best features of earlier flaw detectors.
The EDDYCON CL eddy current flaw detector is intended for:
Detection of surface cracks in various parts.
Finding of cracks in holes and multi-layered structures with the help of rotary scanners.
Recognition of sub-surface flaws in non-magnetic conductive materials.
Evaluation of non-magnetic material conductivity and paint coating thickness.
Eddy current welding quality inspection.
- Easy-to-operate due to user-friendly intuitive interface.
- Light and sound alarms.
- Strict compliance with ISO 15548.
- Tune-out from the influence of working gap and inhomogeneity of electromagnetic properties.
- Saving over 1000 settings and test results to the flaw detector memory.
- Data communication to PC via USB flash drive or Ethernet.
- Specialty software for viewing test results and printing out test reports.
- Software upgrade using USB flash drives.
- Evaluation of flaw depth.
- Review of saved defectograms on the display of eddy current flaw detector.
- Quick-release Li-Ion battery for continuous 7-hour operation.
- Lightweight – up to 3.7 lbs (1.7 kg).
Due to the rubber corners and folding handle it can be safely placed both on a table and on various test objects. It even can be hanged if necessary. Still, Eddycon CL can be used as portable being fixed with straps on the operator’s chest.
7.2" TFT color display with 800×480 pixels resolution ensures a high-definition picture on the screen. The screen has several display modes such as light, dark, standard.
b) Menu+XY
c) Menu+A(t)
d) XY+A(t)
e) XY
f) A(t)
Elaborated keypad design gives a quick access to any menu of the flaw detector by pressing a single key only!
TESTING menu - main operating mode of the flaw detector;
MEMORY menu - is used to save/download the settings and test results;
SETTINGS menu - basic settings of the flaw detector;
VIEW menu - allows viewing test results saved to the flaw detector’s memory;
CALIBRATION menu - serves to create calibration curves for more precise evaluation of flaw depth.
Railway
eddy current crack detection of railway parts and car units (wheelsets and axle box bogies of freight, refrigerator and passenger cars, automatic coupler, etc.).
Aerospace
eddy current inspection of aircraft engineering parts (wheel disks, skin, turbine blades, multi-layered structures, various holes, etc.).
Chemical
examination of pipelines, industrial tanks, etc.
OIL & GAS
eddy current crack detection of pipelines, turbine blades of gas-distributing stations (GDS), pressure vessels, etc.
Power
non-destructive testing of steam generator tubes and headers by eddy current bobbin probes, etc.
Heavy machinery
eddy current inspection of bars, wires, steel structures, mill rollers, plates, etc.
