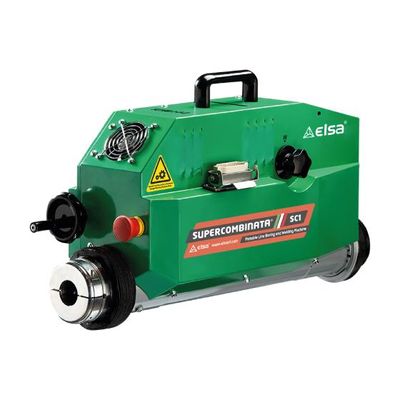

Elsa - Model Supercombinata SC1 -Portable line boring machine

DIAMETERS

Boring bar diameter: ø 40 x 2200 mm

In line boring: ø 42 - 400 mm

External Line Boring: Extra kit

Internal welding: ø 42 – 400 mm

External welding: ø 42 – 400 mm

Drilling: Suitable

Tapping: Suitable

Threading: Extra kit

Facing of orthogonal planes: Extra kit

ROTATION MOTOR

AC motor: Single phase

Power at rated speed: 1800 W

Gearbox: 4-speed

Output torque at the bar: Up to 400 Nm with 95 rpm

FEED MOTOR

Gear motor: DC

Power at rated speed: 90 W

Max Speed: 11 rpm

Feed system: Electromechanical

Feed: Manual/Automatic

WELDING TECHNOLOGY

Spiral: Continuous with variable step

Welding machine: Compatible with MIG/MAG welder with EURO connector

LONGITUDINAL STROKE

Unlimited: With 350 mm pitch

ELECTRONIC CONTROL PANEL

Voltage: 220/240 V (50/60 Hz)

Main switch: Available

Emergency switch: Available

Inverter feed: RH/LH

Inverter rotation: CW/CCW

Speed regulator: Rotation/Feed

Electrical absorption: 2000 W

Control panel 110/120 V: Upon request

Digital control panel: Upon request

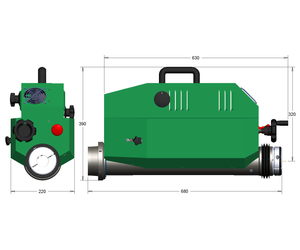

DIMENSIONS

Length: 680 mm

Width: 240 mm

Height: 380 mm

Weight central unit: 36 Kg

STANDARD EQUIPMENT

Qty 1 - Main unit

Qty 1 - Boring machine stand

Qty 1 - Electronic control panel

Qty 1 - Control panel holder

Qty 1 - Cable control panel/machine

Qty 1 - Power cable 220 V

Qty 1 - Boring bar ø 40x2200 mm

Qty 1 - Boring bar ø 40x1100 mm

Qty 1 - Boring bar extension 520 mm

Qty 1 - Pivot

Qty 1 - Tool holder for boring d. 100-400 mm

Qty 1 - Special tool holder LH ø 12x40 mm

Qty 1 - Tool holder LH ø 12x40 mm

Qty 1 - Tool holder LH ø 12x60 mm

Qty 1 - Tool holder RH ø 12x100 mm

Qty 1 - Box with 10 cutting inserts

Qty 2 - Main bar support

Qty 2 - Additional support

Qty 12 - Bracket for flanges

Qty 1 - Telescopic shaft for welding

Qty 5 - Diffusor extension 35 mm

Qty 1 - Diffusor extension 100 mm

Qty 4 - Short gas nozzle

Qty 4 - Long gas nozzle

Qty 5 - Short contact tip ø 0,8 mm wire

Qty 5 - Long contact tip ø 0,8 mm wire

Qty 1 - O-ring for welding shaft 100x5 mm

Qty 1 - Terminal lance for external welding

Qty 1 - Centring system for through holes

Qty 1 - Centring system for blind holes

Qty 1 - Telescopic gauge up to ø 400 mm

Qty 1 - Dial gauge

Qty 1 - Dial gauge support

Qty 1 - Set of wrenches

Qty 1 - Screws and bolts

EXTRA KITS

BORING REDUCTION

KEP00187 Ø 22 - 44 mm (0,87” - 1,73”)

KEP00188 Ø 32 - 70 mm (1,26” - 2,76”)

FACING

KES00186 Ø 48 - 255 mm (1,89” - 10,04”)

KES00200 Ø 56 - 400 mm (2,20” - 15,75”)

INTERNAL THREADING

KFL00928 Ø 120 - 350 mm (4,72” - 13,78”)

OD MACHINING

KEL00202 Ø 100 - 200 mm - D. 200 mm (3,94” - 7,88”)

KEL00203 Ø 150 - 300 mm - D. 300 mm (5,90” - 11,81”)

BIG DIAMETERS

KED00180 Ø 400 - 600 mm (15,75” - 23,62”)
