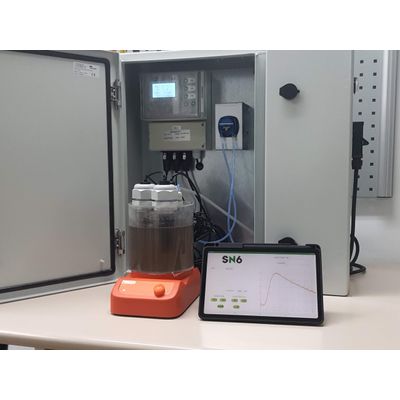

Sensara - Model SN6 -Portable Respirometer System

Using the SN-6 respirometer, the following tests are carried out that provide the following parameters automatically:

• OUR TEST (Global Respirometry): OUR, SOUR, pH, ORP, Temperature
• AUR TEST (Nitrification Rate): Rn, AUR, pH, ORP, Temperature
• TOX TEST (Toxicity): % Inhibition

• COD TEST (COD Fractionation) : biodegradable COD and rapidly biodegradable COD

• TOXICITY . Spill detection.
• Advanced Aeration Control
• DENITRIFICATION optimization
• Optimization of NITRIFICATION
• Optimization of PLANTS WITH DILUTION EFFECTS
• Automatic control of nutrient dosage, based on respirometry

• slow dynamics making it difficult to make decisions when problems arise. Whichever measure is decided to take, its effects on the process will not be clearly observed until a few days have passed.
• This fact makes it especially relevant, on the one hand, to detect problems as soon as possible and, on the other hand, to make the right decisions from the start. However, it is not possible to evaluate the biological process with physical or chemical measurements, direct information is needed on the biomass and the effect that the wastewater to be treated has on it, as the SENSARA respirometers do.

• Portable, light, resistant, easy to use and ergonomic equipment,
• low maintenance sensors,
• toxicity tests,
• Reproduction of the process in real conditions,
• energy optimization,
• Process optimization:
• Oxygen needs.
• Rates and capacity of nitrification.

• User interface: tablet with APP SN6.
• Software for automatic calculation of OUR/SOUR, Rsn/AUR, etc.
• Simple data transfer to PC.
• Data history.
• Portable aluminum cabinet 600x600mm.

• Power supply 220 V 50 Hz,
• Data register,
• trend charts,
• data export,
• computer software,
• APP for mobile device.
