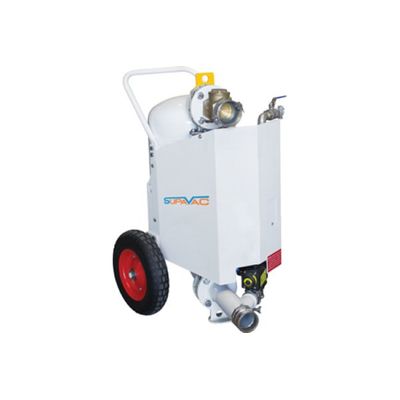

SupaVacModel SV60-V -Portable Slurry Pump

SHARE

The SV60-V Guzzla Portable Solids Pump is a one man vacuum loading, pressure discharge pump capable of recovering and transferring up to 10m3/hr @SG1.0(44USGPM) of almost any flowable material. The SV60-V Guzzla Portable Solids Pump generates up to 25”Hg+ of vacuum combined with high airflow which allows the unit to transfer materials ranging from mining slurries and oil sludge through to cementatious powders and grains. The SV60-V Guzzla Portable Solids Pump is employed worldwide servicing farms, mines, drill rigs, construction sites, process and power plants and many more.

Most popular related searches
  • 100% compressed air operation
  • Intrinsically safe
  • Versatile
  • No internal moving components
  • Fully automatic
  • High vacuum and high airflow
  • Delivers up to 500 metres (1640 feet)
  • High solids content transfer
  • Also available in 316 stainless steel
  • Spillage recovery and transfer
  • Sump cleaning and desilting
  • Tank bottoms and sludge extraction
  • Pneumatic excavation and dewatering
  • OBM transfer and pit cleaning
  • Bentonite, sand, and cement powders transfer
  • Height 110 cm
  • Width 70 cm
  • Length 90 cm
  • Weight 198 kg
  • Air consumption 150cfm at 85psi to 100psi
  • Up to 25”Hg+ (85kPa) vacuum
  • Suction inlet 75 mm (3”)
  • Discharge outlet 75 mm (3”)
  • Handles solids to 50 mm (2”)
