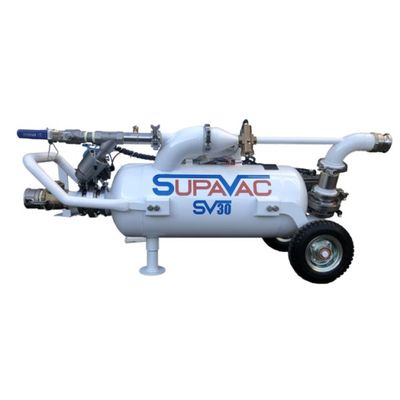

SupaVac - Model SV30 -Portable Solids Pump

The SV30 Portable Solids Pump is a one person vacuum loading, pressure discharge pump capable of recovering and transferring almost any flowable sludge or slurry.

Most popular related searches

solids pump

solids pumping

The SV30 Portable Solids Pump is 100% air powered and operated, generates up to 22″Hg+ of vacuum combined with high airflow which allows the unit to transfer materials typically considered un-pumpable.

For more than 25 years SupaVac Solids Pumps have been employed worldwide servicing oil & gas, drill rigs, marine tank cleaning, mining, municipal, industrial, agriculture, and construction industries.

Multipurpose vacuum pump
Portable and compact
Lightweight robust constructions
100% compressed air operation
Intrinsically safe
Fully automatic
Versatile
No internal moving components
Minimal maintenance
Recovers material from up to 30 metres (98ft)
Delivers up to 300 metres (984ft)

Waste management solids control
Effluent transfer
Drilling mud waste
Agricultural product and waste transfer
Food and beverage
Corrosive slurries
Spillage recovery and transfer
Sump cleaning and desilting
Tank sludge extraction
Municipal waste
Garnet sludge

Height 55 cm (22″)
Width 45 cm (18″)
Length 129 cm (51″)
Weight 66 kg (146lb)
Throughput capacity up to 14m3/hr (61USGPM) @ SG1.0
Air consumption option 80cfm at 102psi (38 L/sec at 7 bar)
125cfm at 102 psi (59 L/sec at 7 bar)
Air supply connection 25mm (1″)
Up to 22″Hg (75kPa) vacuum at 102psi (7 bar)
Suction 50 mm (2″) BSP/Type B camlock
Discharge 50 mm (2″) BSP/Type A camlock
Handles solids to 35 mm (1.3″)
Carbon steel vessel
