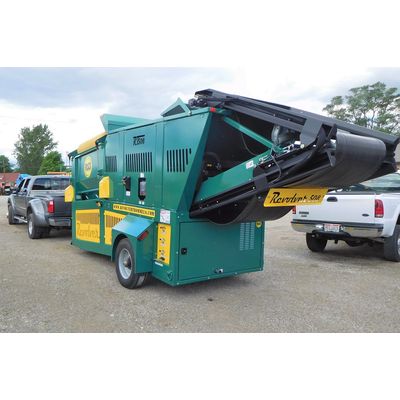

Revolver - Model RT508 -Portable Trommel Screening Plant for Material Processing

The Revolver RT508 is a state of the art trommel screening system, engineered and manufactured in North America to exceed the rugged, heavy duty standards North American contractors demand. Portability, high production, efficiency, user friendly, all are key benefits with this very affordable plant designed to provide a low processing cost per yard in a wide variety of materials.

The RT508 boasts specifications that meet or exceed those of much bigger plants. The 5′ diameter drum is the biggest in its class in the industry. The 36″ variable speed belt feeder is the widest in its class in the industry. Add the driving power of either the Caterpillar or Kubota diesel engines and the RT508 becomes a very attractive plant suitably productive, no matter what the conditions.

Applications from all across Canada and the United States, and even as far away as Australia, have put the RT508 to the test only to add to its growing reputation as a compact, versatile plant whose features and benefits out weigh its competitors, from home and off shore.

The drum of the RT508 has been designed with the standard features and specifications that benefit increased profitability by maximizing production and keeping waste to a minimum.

• 5′ Dia. x 8′ long with choice of screen size – the widest diameter in its size class in the industry
• Variable speed rotation for optimum screening action and product control
• “Quick change” feature – simple and easy 15 minute change out time
• Drum is reversible to prevent plugging
• Heavy duty brush screen cleaning system with user friendly ground level adjustment
• Single piece screen for durability and longer life
• Four wheel drive on foam solid rubber tires for better control and a very positive action
• 24″ Drum mounted rubber boot extension – standard on all drums
• Optional drum design to accommodate a range of materials

Easy mobilisation is essential for contractors and landscapers in today’s marketplace. Whether it’s getting quickly to and from a jobsite or manoeuvering around commercial or residential subdivisions, the RT508 is equipped to do the job. Easily towed by a one ton pickup truck, the Revolver can be set up to produce material in minutes saving time and increasing efficiency. Conditions, materials and circumstances will change from job to job so the RT508 is the answer for quick, easy mobilisation and productivity in tight spaces, maximizing profits by processing materials on site and eliminating hauling costs.

• Easily towed by one ton pickup truck
• 12,000 lb. Certified highway axle
• 235/80R16 Highway rated radial tires mounted on solid steel rims
• LED Light package
• Electric brakes
• LED Light package
• Adjustable Pintle hitch
• Retractable tow bar – stored inside the frame when in the operating position
• Hydraulic landing gear – mounted inside the frame
