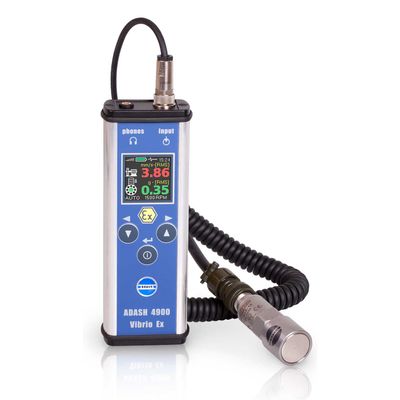

Vibrio - Model A4900 M Ex -Portable Vibration Devices
The Vibrio M is now also avaliable in an Ex version. All basic vibrodiagnostics measurements are available: Overall Values, FFT Spectrum, Time signal, Frequency bands, Route measurement or Expert system. You can listen to the signal with the headphones supplied with every unit.
VIBRIOM EX
Vibration Meter, Analyzer and Data Collector in Intrinsically Safe Version
Predictive Maintenance based on condition monitoring starts here.
Expert System
automatic machine fault detection
Plug and Play
don’t bother with settings, just measure
MAINTENANCE SWISS ARMY KNIFE Vibrio M Ex
FFT, Time Waveform
Acceleration, Velocity, Displacement
ISO 10816 standards
UNIVERSAL AND TOUGH
Ex certification: II 2 G Ex ib IIC T4 Gb
[II] Non-mining
[2] Zone 1
[G] Gas atmosphere
[Ex ib] Principle of protection: Intrinsic Safety EN 60079-11
[IIC] Gas group - Acetylene, Hydrogen
[T4] Temperature class 135°C
[Gb] Equipment Protection Level – Zone 1 (high protection)
Heavy duty casing
2 x AA batteries - 7 hours operation
Direct measurement from
proximity probes (optionally)
3.5 Jack
3 buttons operation
Data transfer
through sensor connector
VIBRIO M + FREE DDS SOFTWARE
Free trending and data analysis software
Collect & Import
Vibrio M Ex along with free DDS software is the easiest start of your predictive maintenance program based on machinery condition.
Collect the data with Vibrio M Ex regularly and import them into DDS software. Follow vibration trends and observe actual condition of your machines.
- All basic vibrodiagnostics measurements: Overall values, Time signal, Frequency bands, FFT Spectrum, Route measurement
- 4 MB memory for data storage
- Detects unbalance, loosenes, misalignment or bearing faults
- ISO 10816-3 included
- 8 hours of operation
- Determines the condition of your bearings, including slow-running ones
Input:
- 1 x ICP® powered Ex accelerometer (AC90x or AC91x)
Input range:
- 60 g PEAK with standard 100 mV/g sensor
Measurements:
- Velocity RMS: 10 - 1 000 Hz [mm/s, ips]
- Velocity PEAK: 10 - 1 000 Hz [mm/s, ips]
- Acceleration RMS: 500 - 16 000 Hz [g]
- Acceleration Peak: 500 - 16 000 Hz [g]
- Velocity time: 1 - 1 000 Hz [mm/s, ips], 2048 samples *
- Velocity spectrum: 1 - 1 000 Hz [mm/s, ips], 800 lines
- Acceleration time: 1 - 16 000 Hz [g], 2048 samples*
- Acceleration spectrum: 1 - 16 000 Hz [g], 800 lines*
- Acceleration Demod-Envelope RMS: 500 - 16 000 Hz [g]
- Acceleration Demod-Envelope Peak: 500 - 16 000 Hz [g]*
- Acceleration Demod-Envelope time: 500 - 16 000 Hz [g], 2048 samples
- Acceleration Demod-Envelope spectrum: 500 - 16 000 Hz [g], 800 lines, range 400 Hz*
- Displacement RMS: 2 - 100 Hz [µm, mil]
- Displacement 0-Peak: 2 - 100 Hz [µm, mil]
- Displacement Peak-Peak: 2 - 100 Hz [µm, mil]
- * available in DDS software for Vibrio
Other functions:
- Vibration stethoscope
Memory:
- 4 MB for data
- 900 measurements of 800 line spectra or 2048 sample time signals may be stored
Data storing:
- Off-Route
- Route with DDS software (free download)
Interface:
- USB 3.0, 2.0 compatible
Software:
- Free version of DDS software (limited database size)
Display:
- Colour graphic OLED display 128x128 pixels, diagonal 1.5“ (38 mm)
Output:
- 1 x AC signal 8 Ω / 0,5 W for external headphones (signal listening)
Power:
- 2 x AA 1.5V batteries (Energizer L91 Ultimate Lithium - 7 hours operation)
Temperature:
- Operating: -20°C to 50°C
Dimensions:
- 150 x 60 x 35 mm
Weight:
- 330 g including batteries (without cable, sensor and magnet)
- 540 g including batteries, cable, sensor and magnet
Accessories:
- Ex vibration sensor (AC90x or AC91x), coiled cable to connect vibration sensor, magnetic base for vibration sensor, headphones with 3.5 mm jack, special USB cable, measuring tip for manual pressure on the sensor, transport case, USB flash drive with the manual
