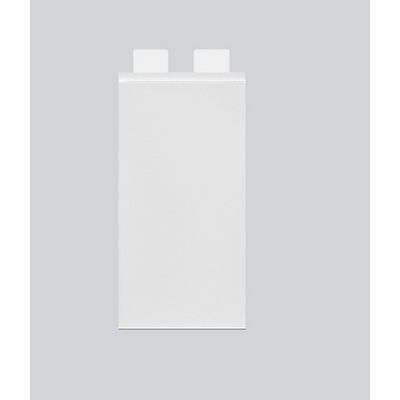

Litrue - Model PJ20F-E & PA50F-E -Pouch Battery Cell
For engineers developing electric motorcycles and hybrid agricultural machinery, finding a power source that perfectly balances high energy capacity with extreme durability is a constant challenge. LiTrue introduces the Long Cycle Life Energy-Type LFP Pouch Battery Cell Series, precision-engineered to bridge this gap. Designed for applications requiring continuous operation, frequent cycling, and a dramatically lower Total Cost of Ownership (TCO).
Striking the Perfect Balance: Energy & Longevity
Available in two highly versatile capacities—20Ah (Model PJ20F-E) and 50Ah (Model PA50F-E)—this series utilizes optimized energy-oriented electrode formulations housed in an advanced stacked pouch structure. The result is a highly efficient cell that delivers an impressive 164–167 Wh/kg energy density without compromising the inherent, unyielding safety of Lithium Iron Phosphate (LFP) chemistry.
More importantly, these cells are built to last, achieving ≥3000 cycles at a rigorous 1C/1C rate, ensuring your power systems run longer, harder, and safer.
- Optimized Energy-Type LFP Design: Achieves higher energy density (up to 167 Wh/kg) within a compact footprint, allowing for lighter vehicles and extended operational ranges.
- Exceptional Cycle Life: Proven to deliver ≥3000 cycles at 1C/1C, significantly reducing battery replacement frequency and long-term maintenance costs.
- Stable & Reliable Discharge: Supports a solid 2C to 3C continuous discharge rate, with pulse capabilities up to 4C to handle sudden acceleration or heavy load spikes.
- Wide Operating Temperature: Performs reliably in harsh outdoor environments, from freezing -30°C conditions to scorching 55°C heat.
- Advanced Stacked Pouch Structure: Features ultra-low internal resistance, lightweight construction, and highly efficient heat dissipation, making pack assembly and thermal management much simpler.

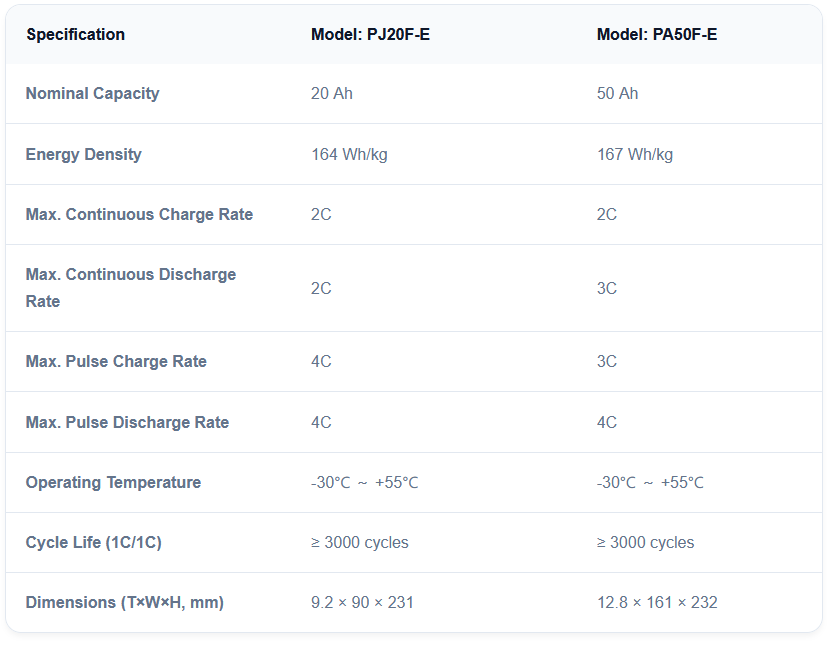

Review the specific data for our 20Ah and 50Ah LFP pouch cells below. Our engineers are fully equipped to design custom battery pack solutions tailored to your specific voltage platforms based on these cells.
