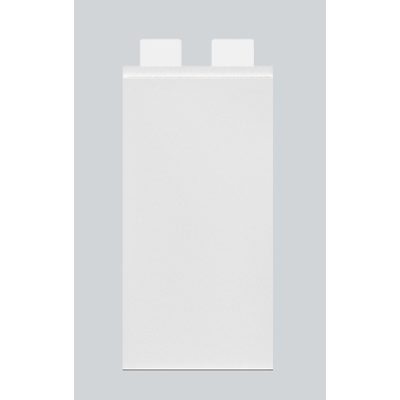

Litrue - Model PC20F-T & PA46F-C -Pouch Battery Cell

By leveraging advanced heat-resistant material systems and optimized electrolyte-electrode structures, these cells deliver thermal stability and durability that clearly outperform standard solutions—drastically improving reliability and cost efficiency for vehicles operating under the blazing sun or intensive heavy usage.

Engineered to Thrive at 45°C and Beyond

Available in 20Ah (Model PC20F-T)and 46Ah (Model PA46F-C)capacities, this series sets a new benchmark for heat resilience. Rather than testing our batteries at standard room temperature, we validate these cells in rigorous high-heat conditions. They are proven to achieve an astounding ≥2000 to 2500 cycles at a sustained 45°C.

• Exceptional High-Temperature Lifespan: Delivers 2000–2500 cycles at 45°C, ensuring your fleet remains operational for years without expensive battery replacements.
• Ultra-Wide Operating Temperature: The PA46F-C model can safely operate in ambient temperatures up to 65°C, while the PC20F-T model provides incredible cold resilience down to -43°C.
• Strong Pulse Performance: Don`t let the heat slow you down. The PC20F-T model supports massive pulse discharges up to 7C, providing the instant torque required for high-speed electric motorcycles and emergency vehicles.
• Balanced Energy Density: Achieving 152–157 Wh/kg, offering the perfect equilibrium between vehicle range, extreme safety, and thermal stability.
• Advanced Stacked Pouch Structure: Designed for low internal resistance and highly efficient heat dissipation, making thermal management and system-level integration seamless.

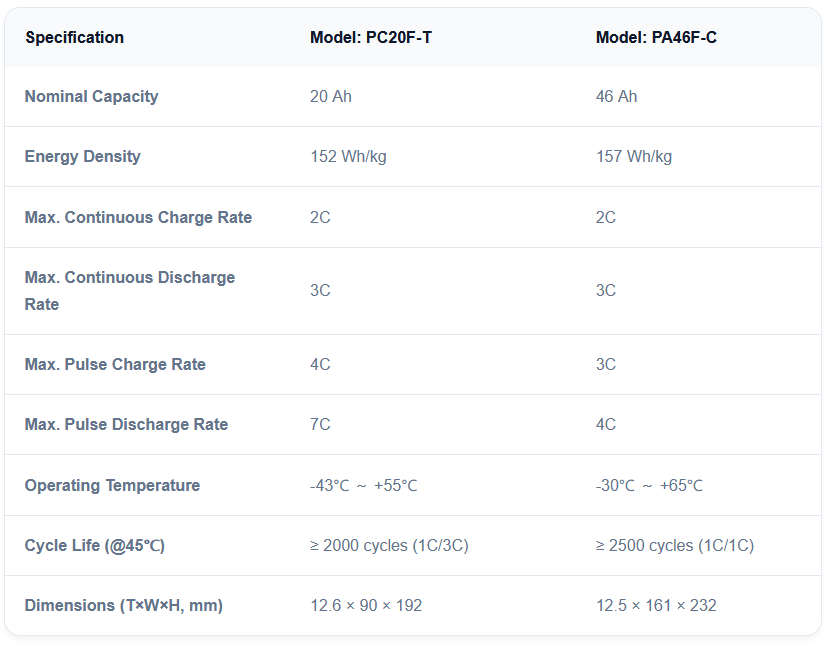

Compare the detailed specifications of our high-temperature LFP pouch cells. Our engineering team provides full system-level customization, tailoring modules and BMS solutions to your specific vehicle platforms.
