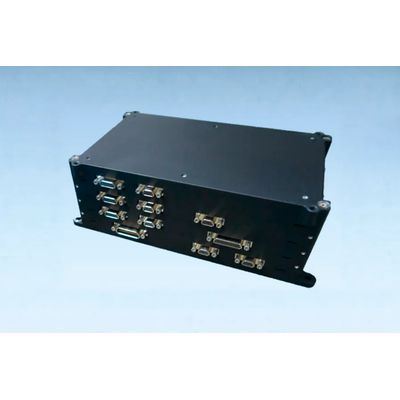

BST - Model PCU-110 -Power Control Unit
The PCU-110 by Berlin Space Technologies is designed to handle power regulation, power switching, DC/DC conversion and safety features of a small satellite. It is highly adaptable for different missions and sub systems. The BST PCU has space heritage since 2015.
Most popular related searches
Parameter: Specification
- Data Interfaces: RS422, I²C
- Solar Panel Interface: 12x 23.1V (customizable)
- Battery Interface: 6x 23.1V (customizable)
- Bus Voltage: 23.1V (customizable)
- Regulated Voltages: 12V, 5V, 3.3V (customizable)
- Mass: 1080 g
- Size: 186x105x61 mm³
- Design Life: 5 years
