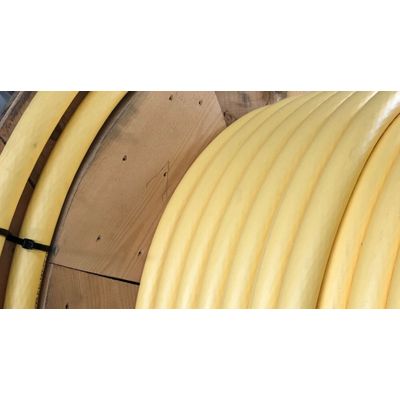

FeritechModel FT0304 -Power & Data Umbilical Cable

SHARE

Feritech custom umbilical cable recommended for use with subsea equipment where high strength and high wear resistance is required. This is achieved with a UV resistant polyurethane (PUR) outer sheath with liquid crystal polymer (LCP) double spiral strength member under providing high strength. Followed by a further UV resistant Polyurethane layer, allowing for a mechanical termination mid umbilical where required.

Most popular related searches
  • 4 x 10.00 mm² Bare copper conductors class 5
  • 1 x 6.00 mm2 Bare copper conductor class 5
  • 2 x 2 x 1.34 mm2 Screened twisted pair
  • Working voltage 10.0 mm2 – 1kV
  • Working voltage 6.0 mm2 – 600V
  • Working voltage 1.34 mm2 – 600V
  • Electrical Resistance 10.0 mm2 – 1.91 Ω/km
  • Electrical Resistance 6.0 mm2 – 3.30 Ω/km
  • Electrical Resistance 1.34 mm2 – 14.52 Ω/km
  • Nominal Overall Diameter— Ø28.50 mm ±1.0mm
  • Breaking Strength—10000 kg
  • Weight in Air—1062 kg/km
  • Weight in sea water—407 kg/km
  • Static bend radius— 145mm min
  • Dynamic bend radius – 290 mm min
