AZ Industrial Lasers, LLC

LasePenModel U-OEM -Powerful Inline Marking System

SHARE

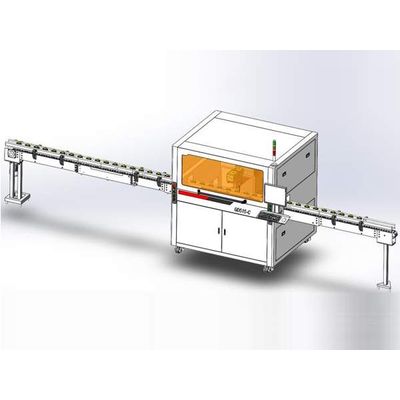

LasePen®U-OEM is a powerful inline marking system that utilizes UV laser source. UV Laser Marker has its unique advantages due to the small beam size and high beam quality. It works on a variety of materials such as Glass, ceramics, metal, plastics, semiconductor silicon wafer, crystals, sapphire, rubber, etc. LasePen®U-OEM is designed for high volume production lines. The marking system is well integrated with the entire production line to ensure smooth and efficient operation. Laser head is separated from control system to provide flexibility and convenience.

Most popular related searches

Output Power: 3W/5W

Laser wavelength: 355nm

Pulse Repitition Rate: 20kHz-100kHz

Working area: 100 X 100 mm2 (customizable)

Marking speed: Max 7000mm/s@F=163mm

Minimum Line Width: 0.01mm@F=160mm (depending on material)

Minimum Character Height: 0.03mm@F=160mm

Power Supply: 110V or 220V

Total Power Consumption: 1000W

Cooling method: Water or Air cooling
