PPM Moisture Analyzers
Phase Dynamics PPM Water-Cut Analyzer raises the standard in innovation. The PPM Analyzers are highly sensitive real-time instruments developed specifically for use in the oil industry to measure parts per million moisture levels in hydrocarbon liquid.
Typical applications requiring ppm measurement capability include:
- Water in condensate monitoring prior to injection into a subsea pipeline
- Moisture levels in NGL for gas processing plants
- Moisture detection in heat transfer fluids such as glycols and Dowtherm
- Moisture detection in cryogenic applications
The product line is based on the innovative sensing technology of oscillator load-pull. As the mixture of flowing liquids passes through the measurement section, the oscillator senses the entire cross section of the material and instantaneously shifts in frequency as the material composition changes. This frequency shift is a direct measure of flowing material change within the measurement section.

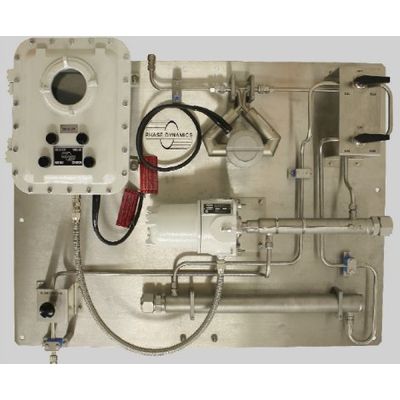

The product family is customizable to meet the exact needs of the global market. The typical system includes the Measurement Section, an Electronics Enclosure, a Coriolis flow meter, a molecular sieve, interconnecting valves, tubes, and system cables.
The Analyzer measurement range is listed in the table. Uncertainty is expressed as a two standard deviation confidence interval.
This family of Analyzers are available with the following certifications:
- CSA: Class1, Division 1, Groups C and D; Class1, Zone 1, Group IIB
- FM: Class 1, Division 1, Groups C and D
- ATEX: EEx d IIB T5, CE Ex II 2 GD, IP66
- PED: Module A1
