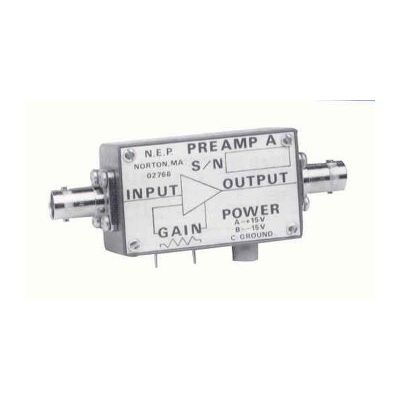

N.E.P. - Model Series A -Pre-Amplifier
Low Noise, Adjustable gain and band-width, Compact size, Single and multi-channel configuration,
Electrical
- Band-width (nominal) : 20 kHz
- Gain (minimum) : 20 db
- Gain (maximum) : 87 db
- Gain Control : Adjustable
- Input impedance : 100 M ohms
- Output impedance : 100 ohms
- DC power requirements : ±15 volts/ 8 mA
- Noise (nominal) : 65 nV/Hz1/2
Mechanical
- Length : 2 3/16 in.
- Width : 1 3/8 in
- Height : 1 3/8 in.
- Input connector : BNC
- Output connector : BNC
- Power connector : 3 pin
