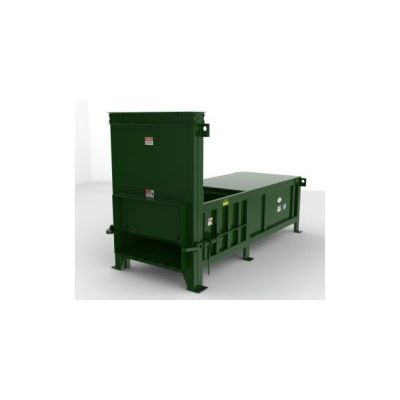

Pre Crusher Compactors

Bulk Pre Crusher Compactors) are available in five standard sizes. In addition there are a large variety of options to choose from which includes hoppers, chutes, walk-on or drive on ramps, guard rails, advanced automation, multi-cycle timers and many other items that are designed to meet a broad range of diverse needs.

Bulk Pre Crusher Compactors are typically used for very tough refuse or trash profiles such as pallets, crates, appliances, Waste_Recycling_Articles.htms, auto parts, manufactured housing parts, boat parts, and other large, hard to handle materials. As far as functionality they are similar to Stationary Compactors in that they work in conjunction with a detachable `receiver container` that is heavily reinforced in order to be able to withstand the tremendous force that is exerted from a Bulk Crusher (versus that of a Stationary Compactor). The Bulk Crushers / Compactors are designed to produce tremendous force for crushing almost anything that is typically diverted from the normal waste streams such as construction refuse, appliance, Waste_Recycling_Articles.htms and other similar bulky items. The quality and compaction force that is provided in both the single ram and two ram series is tops in the industry. In addition, one of the most important features is the corrugated floor and sides which not only helps add strength, but also helps to prevent refuse from lodging under the ram.

Bulk Pre Crusher Compactors - Basic Specs to Consider:

• Corrugated Floor and Sides
• Total Force (Normal & Maximum)
• Operating Pressure (Normal & Maximum)
• Charge Box Capacity
• Clear Top Opening
• Cycle Time
• Ram Penetration
• Motor Size
• Cylinder(s) Bore Size, Cylinder Rod Size and Stroke
• Construction of the Floor, Sides, Breaker Bar, Ram Face, Ram Top, Sides and Bottom

Bulk Pre Crusher Compactors - Main Standard Features:

• UL & Canadian UL Listed Control Panel
• Programmable logic Controller
• Corrugated Floor & Sides
• Automatic & Manual Pre-Crush Modes
• Separate Remote Override Controls
• Operators Controls on 14’ flex conduit / Sealtite
• External Power Unit
• 20 HP 230/460 Volt 3 Phase
• 10 Micron Air Breather
• 200 Mesh Suction Filter
• 25 Micron Return Filter
• Oil Level Sight Gauge with Thermometer
• Replacement / Adjustable Ram Bearings
• Limit controls easily accessible
• Container Full Light
• 29 GPM Double Vane Pump
• 64 Gallon Oil Reservoir
• Pressure Gauge
• Ram Roller greaseable from the outside
• Center feet & legs installed
• Ratchet turn buckles with 2” Claw Type marriage Couplers / Hooks
• Red Oxide Primer Finish
• More .....

Bulk Pre Crusher Compactors - Options to consider:

• Hoppers
• Chutes
• Walk On Ramps
• Drive on Ramps
• Guard Rails
• 3 / 4 Full Light
• Compactor / Pre-Crusher Key Selector Switch
• Compactor / Pre-Crusher Toggle Switch
• Low Oil / High Temp Shut Off
• Multiple Pre-Crush Timer
• Multicycle Timer
• Hold to Operate
• Photoelectric Eye
• 20 HP 200 Volt 3 Phase Electric Motor
• 20 HP 575 Volt 3 Phase Electric Motor
• 1500 WATT Oil Heater with Thermostat  (Requires Separate 114 VAC Supply)
• Hour Meter
• Pressure Gauge
• Weather Cover
• Interlock Switch on 30’ Sealite
• More ....
