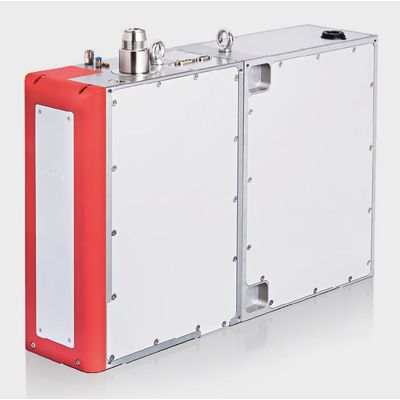

RAYLASE - Model AM-MODULE NEXT GEN -Pre-Focusing Deflection Unit
The AM-MODULE NEXT GEN for fibre-coupled lasers features homogeneous power density and exceptionally low drift values. It enables ultradynamic, rapid processing with flexible spot diameters. Full digital, model-based control is ensured with absolute precision. up to 4 modules can be operated simultaneously over one construction field. Direct connection of a photodiode or pyrometer for process control is also possible.
For more effective process monitoring, the BASE-Module can be expanded with the SENSOR-Module. The 2 integrated sensors not only ensure customized quality control, they also enable archiving and process control. Focus tracking is built-in for one of the sensors. Data can be preprocessed either directly in the expanded camera electronics or on a powerful frame grabber.
The AM-MODULE NEXT GEN is available in 2 variants, as a standard module or a high performance module with fully digitally galvo-scanner. The high performance module is designed for use in the manufacture of ultra-high precision components which must satisfy particularly high safety specifications. This application is of particular interest for users in the aerospace industry, automotive manufacturing and medical engineering.
- Fast beam deflection with uniform power distribution over the entire field
- High dynamic for 3D-Production of metal-parts for working fields from up to 600 mm x 600 mm
- Innovative design for effective full parallelization over the working field
- Direct fibre connection and zoom axis for highly dynamic change of spot size
- On-Axis process monitoring and control using various sensors with focus tracking
