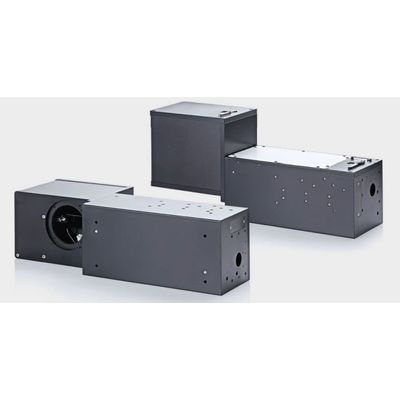

RAYLASE - Model AXIALSCAN-20 / -30 -Pre-Focusing Deflection Unit
FromRAYLASE GmbH
The AXIALSCAN-20/-30 deflection units offer very small spot diameters at larg field sizes, flexibility, high scanning speeds, long term stability and low drift values for superior quality standards. This combination results in high power density in the spot, enabling new application and reduced system costs. Deflection units are designed for field sizes from 100 mm x 100 mm up to 1,800 mm x 1,800 mm.
Most popular related searches
OPTIONS
- AXIALSCAN MOTORIZED: This option of the AXIALSCAN enable motorized adjustment of the operating field steered by the stepper motor interface
- AXIALSCAN-HP – High Power: With optimized Nd: YAG and CO2 optics for up to 4 kW
- AXIALSCAN-HS – High Speed: With double motor driven Z-axis and extremely light and stiff high performance mirrors
INTERFACES
The deflection units are compatible to the XY2-100 standard. They can be digitally controlled by a control card, such as the SP-ICE-1 PCIe PRO or SP-ICE-3.
MIRRORS AND OBJECTIVES
Scan mirrors and objectives with optimized mounts are available for all typical laser types.
TYPICAL APPLICATIONS
The AXIALSCAN-20/-30 deflection units are ideally suited for these applications:
- Cutting
- Perforating
- Welding
- Drilling
- Marking-and-processing-On-The-Fly (MOTF) applications
- 3D-applications
- Additive Manufacturing
- For wide working fields with small spot size and 3D-applications
- For laser power of up to 4 kW
- High speed Z-axis with double motor option
- Available options: Motorized, high power, high speed, low drift
- Variable field sizes (mm x mm): 100 x 100 up to 1,800 x 1,800
