Solar - Model Type 7144-1.0 -Precision Resistor

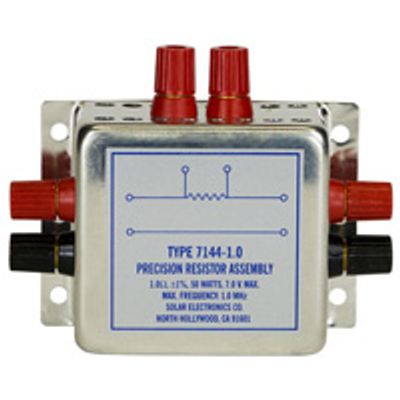

A 50 W, 1 Ω resistor used in Test Method RS01 to measure the current in the Solar Type 7429-1 Radiating Loop Antenna. This device is mounted in a special housing with terminals for a voltmeter. Since the resistance value is 1 Ω plus or minus 5%, the voltage measured on these terminals is equal to the current flowing in the circuit, up to 100 kHz.
