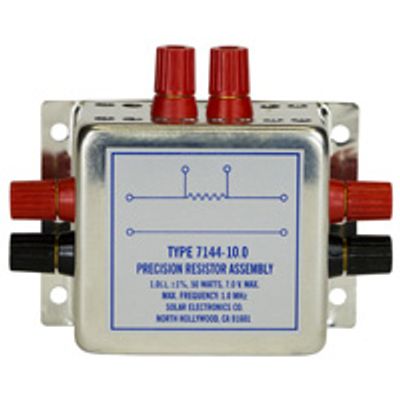

Solar - Model Type 7144-10 -Precision Resistor

A 50 W, 10 Ω resistor used in Test Method RS02, Notice 3, U.S. Army version of MIL-STD-462 and Test Method CS09, Notice 4, U.S. Navy version of MIL-STD-462. This resistor can be used where `R` is designated in Figure CS09-1 with a voltmeter connected across it to determine the required 1 A of current. Useful, because it can cover the required frequency range and can be used up to 300 kHz. Most EMI current probes are deficient at the low end of the range.
