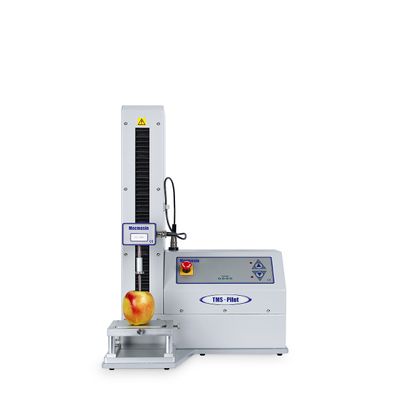

Mecmesin - Model TMS-Pilot -Precision Texture Analyzer

Designed specifically for quick and easy texture assessments, the TMS-Pilot provides an affordable solution for texture analysis up to 500 N.

Compact, rugged and portable, the motorised TMS-Pilot texture analyzer ensures reliable and repeatable test results.

Use the TMS-Pilot to quickly determine the textural properties of bakery products, cereals, confectionery, snacks, dairy products, fruit and vegetables, as well as non-food products such as cosmetics, pharmaceuticals and many more.

The TMS-Pilot requires minimum operator training. Supplied with Mecmesin`s powerful Emperor software, tests can determine consistent standards within the raw or finished product and programs can be saved for instant recall.

The TMS-Pilot can accommodate a range of probes and fixtures (sold separately). Just choose from a range of ‘Plug and Play’ loadcells (sold separately) and start testing your products.

• Robust bench-top machine – portable and easy to move around
• Easy-to-use with minimal training – one touch to start test
• Integrated bellows – protect against ingress
• Extensive range of probes & fixtures – flexible and versatile
• ‘Plug and Play’ loadcells – quick and easy to interchange
• Password protected login – identifies operator for full traceability
• Unlimted storage of test methods – minimises set-up time
• Customised test reports – tailor reports of results to your needs

LOAD

Maximum Load Rating in tension or compression: 500 N (110 lbf)
Load Accuracy: ±0.1% of full scale for loadcells from 2 – 500 N
Loadcells: Intelligent digital loadcells, changeable by the user in seconds
Loadcell Capacities Available: 2, 5, 10, 25, 50, 100, 250, 500 N (0.45 – 112 lbf)

SPEED

Speed Range: 1 – 500 mm/min (0.04 – 19.5 in/min)
Speed Accuracy: ± 0.1% of set speed
Speed Resolution: 1 mm/min (0.04 in/min)

DISPLACEMENT

Displacement Accuracy: ±0.13 mm
Displacement Resolution: 0.01 mm (0.0004”)
Maximum Travel: 300 mm (12”)

DIMENSIONS

Data Acquisition Rate: Selectable from 1000, 500, 100, 50, 10 Hz
Internal Sampling Rate: 16 kHz
Power Supply: 110V/230V ac, 60/50 Hz
Weight: 19.2 kg (42.3 lbs)
Operating Temperature: 10ºC – 35ºC (50ºF – 95ºF)
Humidity Range: Normal industry and laboratory conditions, non-condensing
