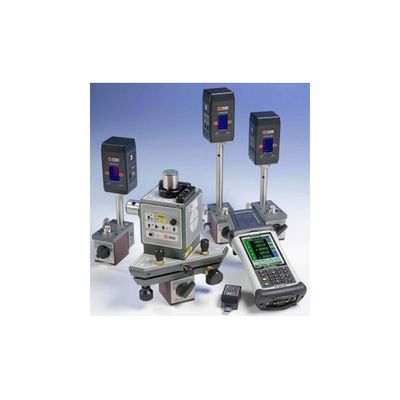

Hamar Laser - Model L-733 -Precision Triple Scan Laser Alignment System
Hamar Laser’s L-733 Precision Triple Scan® Laser Alignment System is a highly accurate and versatile alignment tool. This powerful yet easy-to-use system is ideal for quickly and accurately checking and fixing the geometry of most lower-accuracy machining centers and excels at many other demanding applications. Our Ultra-Precision Series L-743 and Precision Series L-733 are the only alignment systems in the world to offer 3 automatically rotating laser planes with the extreme high accuracy needed for today’s ever-tightening tolerances. This creates a powerful tool that not only measures surface flatness, squareness and straightness, but fixes complex alignment problems in a fraction of the time needed with conventional methods.
- Fast: Data updates in real time to align boring mills, gantries and machining centers up to 70% faster than traditional methods or laser interferometers.
- Easy: Measures the three main axes of a machine at the same time for flatness, straightness and squareness, and checks any additional axes for parallelism usually with the one setup.
- Accurate: Precision laser planes have a flatness of accuracy .00012 in/ft. (0.01 mm/m or 2 arc seconds) in a 180º/360° sweep and .00006 in/ft. (0.005 mm/m or 1 arc second) in a 90º sweep.
- Versatile: Ideal for nearly all types of lower-accuracy machine tools, as well as many other applications including aircraft assembly, automotive transfer lines, injection molding machines, roll alignment and laser and water-jet cutting machines.
- Smart: Powerful Windows-based alignment software, combined with advanced wireless interfaces, makes collecting and analyzing alignment data fast and easy.
- 3 continuously rotating laser planes with operational range of 100 ft (30.5 meters) in radius.
- Laser planes have a flatness of accuracy .00012 in/ft. (0.01 mm/m or 2 arc seconds) in a 180º/360° sweep and .00006 in/ft. (0.005 mm/m or 1 arc second) in a 90º sweep.
- Planes are mutually square up to .00012 in/ft. (0.01 mm/m).
- Includes L-123 Pitch/Roll/Yaw base with coarse adjustments.
- Standard Targets: A-1519 2.4ZB Wireless Target with ±.55 in. (12.7 mm) Measuring Range and .00002 in. (0.00058 mm) Resolution.
- Real-time data updating so you can watch the alignment values update as the machine is being adjusted.
- Backlit levels accurate to 3 arc seconds .00018 in/ft. (0.015 mm/m). Upgrade to Split-Prism levels for accuracy to .00006 in/ft (0.005 mm/m).
- Typical setup time 20 minutes or less.
- Battery or AC powered.
Aerospace
- Aircraft Interior Alignment (Storage Bins, Galleys, etc.)
- Body-to-Body Join Assembly
- Floor Beam Alignment
- Jig/Tooling Calibration and Leveling
- Seat-Track Alignment
- Wing-to-Body Joining Alignment
Fabricating Machinery
- Laser-Cutting Machines
- Routers
- Saw Mills
- Tube-Bending Machines
- Water-Jet Machines
- Woodworking Machines
Fabrication Alignment
- Agricultural Machinery Assembly
- Large Construction Machinery Assembly
- Locomotive Assembly
- Truck Bed Assembly
- Wind Turbine Flange Parallelism
Machine Tools – Lower Accuracy
- Floor and Spar Mills
- Gantries
- Horizontal and Vertical Boring Mills
- Horizontal and Vertical Machining Centers
- Large-Lathe Beds
- Machine Tool Assembly and Calibration
- Roll-Forming Machines
- Transfer-Line Wing Bases
- Vertical and Horizontal Presses
- Vertical-Turning Lathes (VTLs)
Quality Control
- Checking Flatness, Straightness, Squareness and Parallelism of Large Fixtures and Parts
Roll Alignment
- Aluminum Mills
- Continuous Casting Machines
- Textile Mills
Ship Building
- Gun Bearing Alignment
- LNG Tanker Hull Construction
- Section Alignment and Layout
