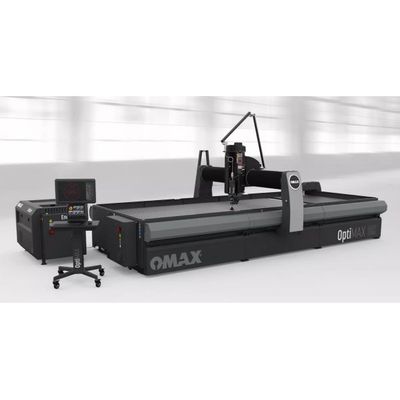

OMAX - Model OptiMAX 80X -Precision Waterjet Cutting Machine
The pinnacle in high-performance precision abrasive waterjet cutting machining. Cutting envelope of 13` 4" x 6` 8" (4.06 m x 2.03 m).
±0.001" (±0.0025 mm) linear position accuracy.
Most popular related searches
precision cutting machine
water level control
water level controller
water jetting
level controller
water control
jetting system
industrial water
- Backed by our exclusive IntelliMAX Premium Software
- Exclusive IntelliTRAX abrasive jet linear drive system provides 350 in/min (8.9 m/min) traverse with real-time closed-loop positioning feedback
- 12-inch (305 mm) programmable Z axis travel with lowest ceiling height requirement design in the industry.
- Standard Rapid Water Level Control for cleaner, safer, and quieter submerged cutting completes most work below 80 dBA
- Standard scissor-style hard plumbing
- Designed and manufactured at the OMAX factory in Kent, Washington, USA
- Does not create heat-affected zones or mechanical stresses
- Machines a wide range of materials and thicknesses, from metals and composites to glass and plastics
- No tool changes & minimal fixturing dramatically reduce setup
- Unlimited free training for the life of your machine
- Unlimited software upgrades for the life of the machine
- 2-year / 4000-hour limited warranty
- 3 days of onsite training upon installation
- MATERIAL SUPPORTS SLATS : 4" x 1/8" Galvanized Steel
- MAXIMUM SUPPORTED MATERIAL LOAD : 400 lbs/sq ft (1,950 kg/sq meter)
- ELECTRICAL REQUIREMENTS : 3-Phase, 380-480 VAC ±10%, 50-60 Hz
- NOISE LEVEL : Below 80 dBA at one meter for submerged cutting
- SPEED : 350 in/min (8.89 m/min)
- LINEAR POSITIONAL ACCURACY* : ±0.001" (±0.025 mm)
- REPEATABILITY* : ±0.001" (±0.025 mm)
- BALLBAR CIRCULARITY* : ±0.003" (±0.076 mm)
