Komax - Model F1160 -Prefeeding Wire Processing Machine

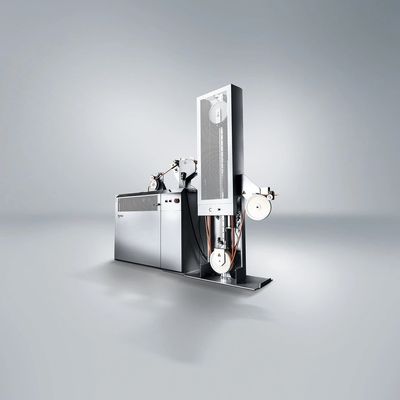

The F1160 prefeeder enables efficient and wire-friendly feeding of thin, rigid, flexible and solid wires into a wire processing machine. The advanced design of the F1160 permits wire feed speeds of up to 4 m/s. In combination with the maximum wire roller weight of up to 600 kg, this means that a high raw material wire length can be processed without wire roller conversion, and the wire processing machine can be used to optimum capacity. The F1160 prefeeder is available with two different wire storage units: a wire storage unit for rigid and solid wires and a wire storage unit for flexible wires. With a focus on user-friendliness, this prefeeder is easy to use and can be integrated into every wire processing process.
Short changeover times
The user-friendly and simple set-up process as well as the portable remote control ensure quick changeover times and a fast and smooth feed.

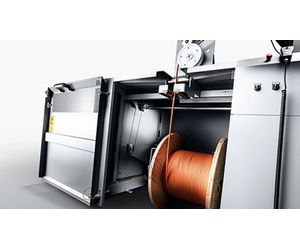

The F1160 is specially designed for handling wire rollers weighing up to 600 kg. With a wire roller diameter of 1,000 mm, many roller sizes can be processed.
F1160
Metric
- Outer diameter of wire reel max.: 1000 mm
- Conductor diameter of wire reel min.: 27 mm
- Width of wire reel max.: 750 mm
- Weight of wire reel max.: 600 kg
- Height of wire outlet min.: 1050-1170 mm
Imperial
- Outer diameter of wire reel max.: 39.4 in
- Conductor diameter of wire reel min.: 1.06 in
- Width of wire reel max.: 29.5 in
- Weight of wire reel max.: 1320 lb
- Height of wire outlet min.: 41.3 - 46.1 in
