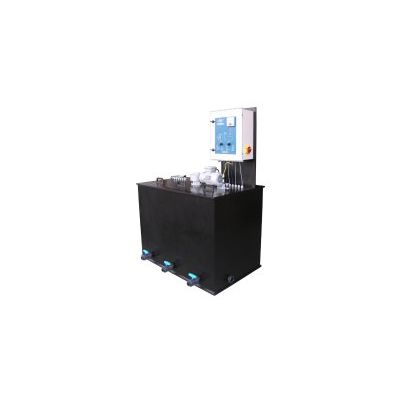

Liquimaker - Model LM2 and LM3 Series -Preparation System

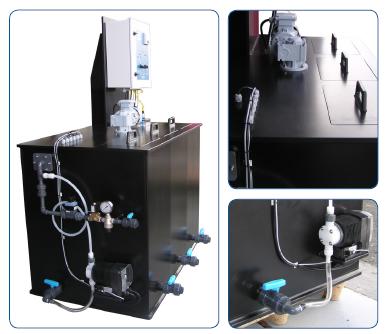

Continuous emulsion polyelectrolyte preparation system, fully automated, with a triple chamber tank (emulsion storage/maturation/dosage) construted in high density polyethylene (offering a good resistance in agressive environments), allowing a high quality end product to be achieved.

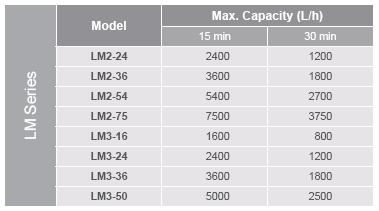

• Preparation capacity up to 7500l/h in concentrations of 1 to 5 g/l for 15 minute  maturing times.
• The automatic graphical console installed as part of command allows the operator to continuously visualize the autonomy of the polymer preparation, the water flow, the concentration of the solution selected, the state of operation and active alarms.
• The ultra-sonic level probe (no contact with the liquid), installed in the last chamber in an acrilic holder, commands the water entrance (electrovalve) into the preparation chamber when it reaches the minimum level, and stops when it reaches the maximum. It also allows the activation of a maximum and minimum level alarm, with information on the console panel, luminous signal and respective external contact with the power supply board.
• The flow meter, the pressure control valve and flow/shut off valve allow the continuous regulation of water entrance guaranteeing a dilution flow that is convenient for the unit works with the established parameters.
• The low speed agitator with stainless steel 316, shaft and propeller, installed in maturation chamber, gives total homogeneity to the final solution (2nd agitator, for the dosage chamber is optional). The programming of the operating regime of the agitator allows for better power management.
