Ravi Products - Press In Inserts

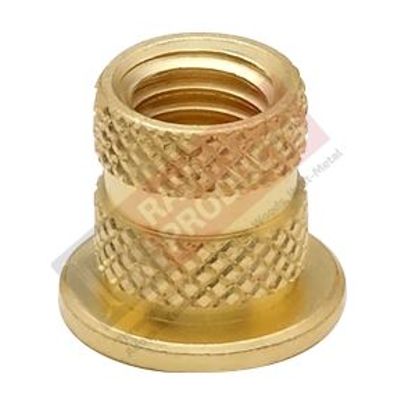

We are a leading press-in insert manufacturing company, providing a wide range of standard and non-standard inserts in a variety of materials, sizes, types, and quantities. The simplest press-in inserts typically consist of an internal thread with a diamond knurl on the outer diameter, leaving a short length smooth. A partial slit runs the length of the knurls, allowing a degree of elastic deflection inward. A flange on the head side can greatly improve pull-through strength while straight knurls can help resist torque-out. To forego a slit or knurls, a hex body with a simple barb profile addresses both torque-out and pull-out with limited tooling.
The offered range of industrial press-in inserts is manufactured by our engineers in complete adherence to international quality standards. This range has been in wide demand on the market for its comprehensive features. Apart from press-in inserts, we also provide expansion inserts, hex inserts, knurled bush, moulded inserts, press in inserts, self-tapping inserts, special inserts, threaded inserts, and many others.
Our products including press-in inserts are available in various grades and specifications to match the most complex requirements of customers. We use high grade raw materials to design and manufacture high quality press-in inserts as per the specifications. To meet all simple to complex industrial or commercial applications, we also provide custom press-in inserts as per custom design/drawing/sample/dimension specification.
Material:
- Brass: C3604, Brass IS-319 Type-1, C36000, CuZn39Pb3, CuZn39Pb2, CuZn38Pb2, CuZn38Pb1.5
- Steel: Steel EN1A/EN1AL,12L14, 11SMNPB30, 9SMNPB28
- Aluminium: EN AW-6060, EN AW-6061, EN AW-6082
- Special metal material composition as per customer requirements.
- In India as well as USA, UK, Europe, and Australia.
- Any finishing / coating as per customer requirement.
- Provide pull-out and torque-out resistance.
- Provides strong, reusable threads. No heat or ultrasonics required.
- Offer good resistance to heat and chemicals.
- Provide a reliable and durable threaded hole solution without the risk of stripping threads in softer materials.
- Knurls or barbs on the outer surface prevents the insert from rotating or loosening over time.
Press-in inserts are mechanical fasteners used to provide a threaded hole or anchor point in a material, typically plastic, wood, or soft metals like aluminium.
Press-in inserts are suitable for applications where a strong, threaded hole is needed in materials that may not support threads well on their own, such as plastics or thin sheet metals.
Aluminium press-in inserts can solve mounting problems concerning electronic components onto plastic or composite structures, they are still made of metal, which add weight to the assembly.
Press-in inserts may still be desirable should future maintenance be expected, as the metal threads make for a more reliable joint that can still be reliably disassembled and reassembled.
