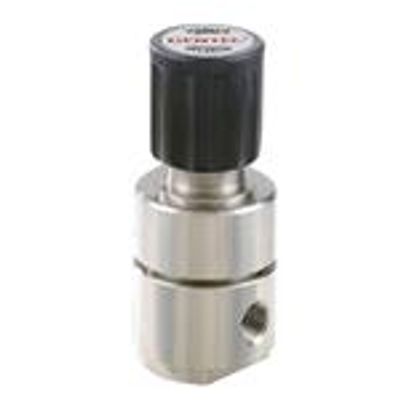

Gentec - Model R23 Series -Pressure Reducing Regulators
GENTEC R23 series regulators are highly accurate, hand loaded, purge gas and pressure reducing regulators for applications of any non-corrosive, corrosive or toxic gases in low pressure. This series features a high flow rate of Cv=1.7 with a maximum inlet of 500 psig or 1500 psig. Single stage. 316L, Hastelloy-C®, Monel® or brass body. Metal to metal diaphragm to body seal. 500 or 1500 psig inlet pressure. High Flow capacity Cv= 1.7.
- Facilities gas supply
- Bulk handling of special gases
- High flow purging
- N2 blanketing
Fluid Media
All gases compatible with materials of construction.
Please consult factory if other media is used.
Pressure Rating
ANSI/ASME B31.3 Standard
Cleaning
Standard Cleaning
ASTM-G93 and CGA 4.1 (Intermediate level )
Oxygen Service
ASTM-G93 and CGA 4.1 (Intermediate level)
The responsibility of specifying the material for oxygen usages lies with the USER.
Operating Parameters
- Control Pressure Ranges : 0-15, 0-25, 0-75, 0-125 psig
- Proof Pressure : 1.5 times operating pressure
- Operating Temperature : -40°F to - 165°F(-40°C to - 74°C)
- Design Maximum Inboard Leak Rate : 2 x10-8 atm cc/sec He
- Flow Capacity : Cv=1.7
MaterialS With Media Contact
- Body : Brass, 316L, Hastelloy® or Monel®
- Seat : PCTFE , Vespel® , Teflon®
- Diaphragm : 316L, Hastelloy®
Weight : 6.0lbs (2.7kg)
