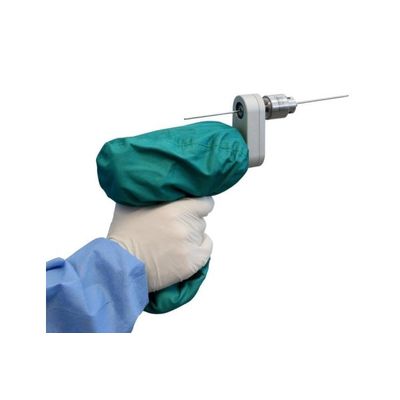

Arbutus Medical DrillCover - PRO Drill Kit
Cannulated drilling and reaming is made possible by our patented adapter. Provides power for acetabular reaming and precision for small bone surgieres. Drill bits and reamers with AO Small, Zimmer and Hudson type quick-connect shanks can be easily connected. Round shanks, pins, wires and remaing quick-connects can be securely gripped using a range of 3-jaw chucks including the high-capacity 10mm chuck which provides enough grip to hold a round shank acetabular reamer without slipping and the keyless chuck for faster re-chucking.
Most popular related searches
steam autoclave
steam sterilizer autoclave
drill bit
drilling bit
autoclave
steam sterilizer
steam sterilization
reamer
autoclave sterilizer
autoclaving sterilization
- Reliable Makita drill converted into a licensed and registered cannulated surgical device.
- Fully sealed & sterile drill offering 50% more torque power than most surgical drills.
- Quick-snap to attach accessories for precise drilling and cannulated reaming.
- Modular system customizable to meet specialized orthopedic needs.

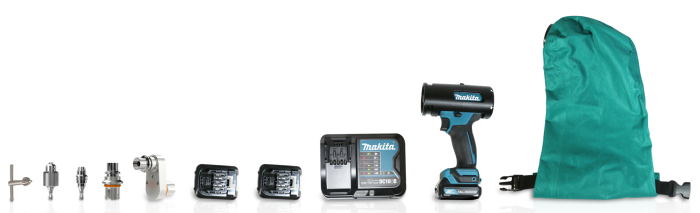

- 1 Modified Makita drill
- 2 Rechargeable Lithium Ion Batteries
- 1 Battery Charger (Plug types A, C and G available)
- 1 DrillCover PRO Linen + 1 Textile Guard
- Adapter options: ⁃ Cannulated (Zimmer and Hudson quick connect) ⁃ InLine (Zimmer and Hudson quick connect)
- Attachment options: ⁃ Regular 3-jaw chuck (7.4mm diameter capacity) ⁃ Large 3-jaw chuck (10mm diameter capacity) ⁃ AO Small Quick-Connect ⁃ Keyless 3-jaw chuck (7.4mm diameter capacity)
- Materials: Surgical grades of stainless steel except anodized aluminum for adapter housing
- Sterilization: Steam autoclave only. Gravity displacement at 121° C for 30 minutes; Prevac autoclave at 132° C for 4 minutes or 134° C for 3 minutes.
- Material: Waterproof textile and construction (including fully-taped seams); pathogen-barrier, Level IV textile
- Lifetime: 75 uses
- Sterilization: Steam autoclave only. Gravity displacement at 121° C for 30 minutes; Prevac autoclave at 132° C for 4 minutes or 134° C for 3 minutes.
- Brushless motor
- 2-Gear Speed
- Drilling: High speed of 0-1500 RPM (rotations per minute), with maximum torque of of 9.6 N-m (84 in-lbs)
- Reaming: Low speed of 0-450 RPM (rotations per minute), with maximum torque of 32 N-m (280 in-lbs)
- Drilling: High speed of 0-1500 RPM (rotations per minute), with maximum torque of of 9.6 N-m (84 in-lbs)
- Battery: 2x 12V rechargeable Lithium-ion batteries
- Weight: 1.1 kg (2.4 Ibs)
- Charger Voltage & Plug Type: 120V or 240V; Plug types A, C or G
