PS-Prozesstechnik - Model XPT-P -Probe

Probe for online particle size and shape measurement by dynamic image analysis. Measurement of particle size distribution and visualization directly in processes like crystallization

Most popular related searches

particle size monitoring

particle sizing

high-temperature monitoring

particle size distribution

particle monitoring system

particle monitoring

temperature monitoring

control cabinet

particle detection

chemical detection

Working principle XPT-P: the probe is inserted into a product stream. Xenon flash light is integrated in the probe for sharp images and fast acquisition. A CCD camera is taking the images which are then analysed and displayed online and results stored.

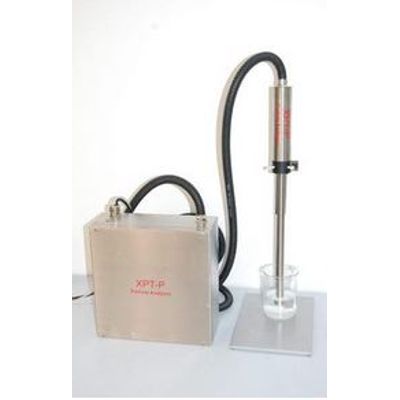

Complete system consists of a stainless steel probe with camera and lighting by ultrashort light pulses, control cabinet, computer and software.

Measurement range: from 5 micron upwards, maximum resolution 1.0 micron/Pixel

Crystallization
Particles in suspension or dry
Bubbles in liquid
High pressure, high temperature
Measurement of particle size, shape and count
Particle shape detection
Food, pharma, polymers, chemicals, oils...
Detection of black-specks

Housing dimensions 300 x 300 x 120mm
Probe material: stainless steel or Hastelloy
Power supply 115/230V
Probe diameter 20mm
