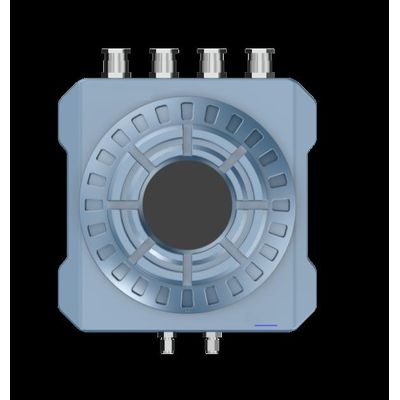

Zetian - Model PGA-5000 -Process Gas Analyzer

1. Highly sensitive Hall buttons, easy to operate
2. Modular design,easy to maintain
3. Integrated flameproof design featured with high stability and reliability.
4. Integrated with multiple parameters, fast in response.
The analyzer is integrated with modules based on a variety of principles to measure gases from major to minor with fast speed and high sensibility, parameters to be measured can be customized.
5. Highly reliable core modules
The core modules such as the light source are imported or adopt highlyreliable structure design with no moving parts, which makes it resistant to vibration.

• Measurement method

TDLAS,thermal conduction,electrochemical(selectable)

• Response time

Within 20 s(related to configured modules)

• Indication error

Within ±1% F.S.(related to configured modules)

• Repeatability

Within 1%

• Zero drift

Within ±1% F.S./6 months(TDLAS)

• Span drift

Within ±1% F.S./6 months(TDLAS)

• Flameproof marking

Ex db IIC T6 Gb

• IP rating

IP66

• Analog output

4x4-20mA outputs (isolated, max load 750Ω)

• Analog input

4x4-20mA inputs(temp,pressure compensation)

• Switch output

(6xpassive +2xactive)outputs(DC 24+2.4V. 1A)

• Switch input

4xinputs (optional)

• Comm interface

RS485/RS232

• Power supply

DC 24V

• Ambient temperature

(-30~60)℃

• Ambient humidity

Within 95% RH
