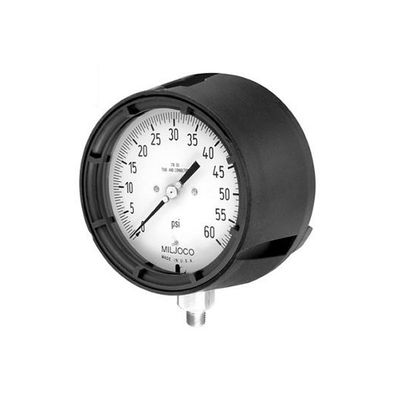

Miljoco - Model P4520L & PLF4520L -Process Gauges
Miljoco Models P4520L & PLF4520L Process Gauges are furnished in a solid-front, turret-style case, molded in hi-impact polypropylene, which is ideally suited for corrosive and difficult environments. The solid-front construction provides added protection for safety considerations and the lens is sealed for weather-proof operation. This gauge can be provided dry or liquid filled. CAUTION: A coil syphon must be installed on the connection when used on steam applications.
Most popular related searches
- CASE: Fiberglass-reinforced black polypropylene.
- RING: Fiberglass-reinforced black polypropylene.
- LENS: Acrylic.
- DIAL: Aluminum, white finished with black markings.
- POINTER: Aluminum, black, micro-adjustable.
- MOVEMENT: Stainless steel, rotary type.
- TUBE & SOCKET: Stainless steel.
- CONNECTION: 1/4” NPT bottom outlet, 1/2” NPT optional.
- ACCURACY: ±1/2% Full Scale (ASME B40.100 Grade 2A).
- PROCESS TEMPERATURE: P4520L: -40 to 250°F (-40 to 120°C),
- PLF4520L: 0 to 140°F (-18 to 60°C).
- AMBIENT TEMPERATURE: P4520L: -40 to 140°F (-40 to 60°C),
- PLF4520L: 0 to 140°F (-18 to 60°C).
