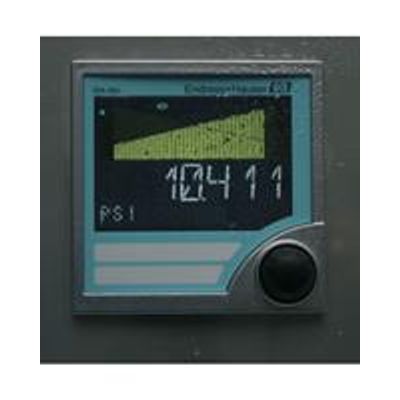

Model RIA452 -Process Indicator with Pump Control
Digital process meter in panel mounted housing for monitoring and displaying analog measured values. The process meter monitors and displays the analog measured values. Pumps can be monitored with the digital status inputs. The RIA452 can provide power directly to two-wire sensors connected. Up to eight freely programmable relays monitor the measured value. Other operating modes for the relays include sensor or device malfunction, batch and pump control functions. Furthermore, the RIA452 can be used as a preset counter and for measuring flow at open channels and measuring weirs.
-
7-digit 14-segment LC display, large bar graph with overrange and underrange
-
Digital status inputs for pump monitoring
-
Flow measurement for open channels and weirs
-
Intrinsically safe input with integrated loop power supply
-
Min/Max value saved
-
Linearization table with up to 32 support points
The single-channel panel meter RIA452 monitors and displays analog measured values. Pumps can be monitored with the digital status inputs.
The RIA452 can provide power directly to two-wire transmitters connected, intrinsically safe as an option. Up to eight freely programmable relays monitor the measured value for limit value overshoot and undershoot. Other operating modes for the relays include sensor or device malfunction, batch and pump control functions (e.g. alternating pump control).
Process indicator & control units
-
Measuring principle
Indicators with control unit
-
Measuring principle
Process indicator with pump control
-
Function
Display
Power
Switch
Seperate
Convert
Count
Calculate -
Display
LCD multicolour
Illuminated
Bargraph -
Power Supply
90...250 V AC
20...28 V AC
20...36 V DC -
Input
1 x analog (U, I, RTD, TC, R)
-
Output
1 x analog (U, I)
1 x transmitter power supply -
Output
1 x analog (U, I)
1 x transmitter power supply -
Software functions
Pump control
Linearisation
Flow calculation
Batch counter -
Certificates
UL rec. Comp
ATEX Ex i
FM USA IS
FM USA NI
CSA IS
CSA NI
TIIS Ex ia -
SIL
Not defined
-
Panel mounting
panel mounting
-
