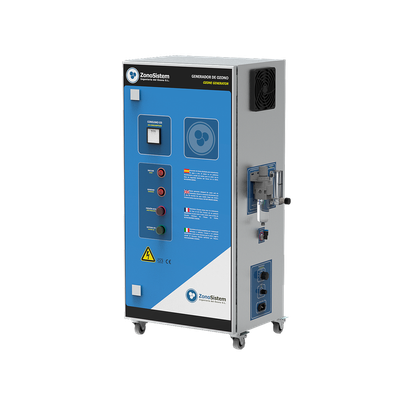

ZonoSistem - Model G40-E -Professional Ozone Generator
Professional Ozone Generator, which works from compressed oxygen bottle or PSA oxygen concentrator. Ozone production of 40 gO3/h, at a concentration of 90 g/Nm3. 230V, 50-60Hz, 400W. This ozone generator is air-cooled. Works from compressed oxygen bottle or PSA oxygen concentrator. It has an air inlet filter and a pressure regulator, manual control using an ON/OFF switch a power manual control potentiometer. With power indicator light and ozone amp consumption indicator. With input and output wall bushings: 8mm tube. Ready to plug and play.
Most popular related searches
ozone generator
ozone generation
PSA oxygen concentrator
oxygen concentrator
ozone generation system
ozone generator system
air intake filter
ozonation
ozone concentration
air cooling system
- Room fittings : Locate in a clean and dry space, free of grease and smoke.
- Ozone Generation system : A 40 gO3/h Module with borosilicate dielectric. air cooled
- Compressed air unit : The equipment does not include compressors. The oxygen is provided by the client.
- Oxygen concentrator : Oxygen must be supplied by the customer, from a bottle or PSA. The kit does not include PSA.
- Control : Ignition with manual START and GENERATE switch. Regulation of the ozone power, by means of a manual potentiometer.
- Sensors : Amps in Ozone and Oxygen Pressure.
- Technical Valves : Oxygen inlet pressure reducer and electrovalve, Ozone outlet electrovalve and oxygen flowmeter with manual regulation
- Included in the packaging : 4 m of 8 mm Teflon tube + power cord + user manual
- Ozone Production : Dry Air = 15 gO3/h
- Oxygen = 40 gO3/h
- Ozone concentration : Dry Air = 5 gO3/m3
- Oxygen = 90 gO3/m3
- Air/Oxygen flow : Dry Air = 50 lpm
- Oxygen = 7,5 lpm
- Power supply : 230V, 50-60Hz
- Electric Power : 400 W
- Gas connection : Inlet and Outlet to Tube 8 mm outer diameter
- Dimensions : 1200 x 400 x 800 mm (Width x Depth x Height)
- Packed size : 1200 x 500 x 800 mm (Width x Depth x Height)
- Weight : 50 Kg
- Gas quality : 95-99% oxygen purity, drying at -10ºC Dew Point.
- Source gas : The team needs a supply of bottled oxygen or PSA.
- Humidity : <90%
- Room temperature : 5-40ºC
- Working pressure : 0-0,4 bar
- Made by : ZonoSistem
- Made in : Spain
- Sold from : 2015
- Last revision : 2021
- Certificates : CE, BIOCIDA PT2, PT4, PT5, PT11
- Warranty : 2 years extendable indefinitely, with maintenance contract
- UFI number : G000-W09P-Y00M-TV8V
