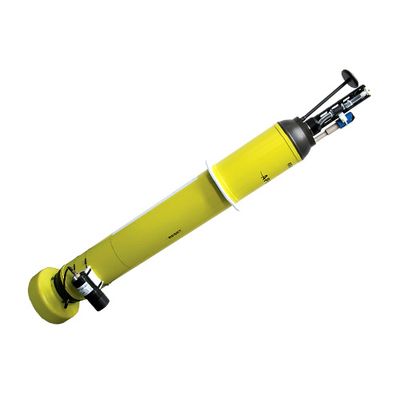

TWR APEX BioGeoChem - Model BGC -Profiling Floats
APEX BioGeoChem (BGC) is Teledyne Webb Research`s (TWR) most requested sensor configuration after the basic Argo float. TWR begins with our field proven APF-11 controller, aluminum hull, lithium primary batteries, and Seabird SBE-41CP CTD. We added an Aanderaa (AADI) model 4330 dissolved oxygen optode and a WETLabs FLbb (chlorophyll_a and backscatter) to complete the package. If needed TWR can substitute either the WET Labs FLbbCD or a Triplet for the FLbb.
- Basic
- Maximum Depth: 2000 meters
- Endurance: 4 years, 150 ascents (nominal)
- Dimensions: 16.5 cm (6.5 in) diameter x 127 cm (50 in) long Add 12.7 cm (5 in) for CTD and Iridium antenna Does not include externally mounted FLbb
Hull
- Aluminum (maximum depth: 2000m) : Standard
- Carbon Fiber (maximum depth: 2000m) : Optional
- Glass Sphere (maximum depth: 6000m) : N/A
Communications/Telemetry
- Argos: N/A
- Iridium Circuit Switch/RUDICS : Standard
- Iridium Short Burst Data (SBD) : Optional
Energy
- Alkaline Batteries : N/A
- Lithium Primary (Non-Rechargeable) : Standard
Features (Configuration Dependent)
- Air Deployable: Optional
- Volunteer Observing Ship (VOS) Package : Optional
- Ice Avoidance : Optional
- Surface Temperature : Optional
- Compensator - Recommended Near Equator : Optional
- Handles : Optional
- Wood Shipping Crates (International) : Standard
- Molded Shipping Crates : Optional
Sensors
- Conductivity - Temperature - Depth (CTD) : Sea-Bird SBE-41CP, RBR Argo
- Temperature - Depth (TD : N/A
- Dissolved Oxygen : Aanderaa 4330, RINKO ARO-FT
- Fluorometers : WET Labs FLbb
- Radiometers : N/A
- Transmissometer: N/A
- pH : Optional SBE Float Deep SeaFETTM
- Carbon Dioxide: N/A
- Nutrients: N/A
- Acoustics: N/A
- Custom sensor integration: N/A
