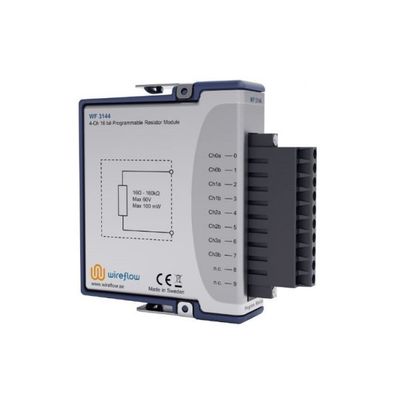

WireFlow - Model WF 3144 -Programmable Resistor Module
FromWireFlow AB
The WF 3144 is a 4-channel, 16-bit, Programmable Resistor Module for Compact RIO. Each channel is galvanically isolated, making it ideal for sensor simulation. The 16-bit resolution is non-linear with finer steps at lower resistance values. It could, for example, be used to emulate a PT100 sensor with a range of 40–180Ω/-150–+200°C with a resolution of 0.1°C.
Most popular related searches
automatic test equipment
laboratory testing
pressure sensor
automation control system
thermistor temperature sensor
RTD sensor
- Channels; 4
- Max Voltage; 60 V
- Max Power; 100 mW/channel
- Range; 16 Ω–160 kΩ
- Update Rate; 200 S/s
- Max Error; R < 1 kΩ: 0,1 %
- Max Error; R < 10 kΩ: 1 %
- Max Error; R < 160 kΩ: 10 %
- Enhanced mode: Max Error; 32 Ω < R < 160 kΩ: 0.25 %
- Four independent, galvanically isolated channels
- Entirely solid-state simulation
- High resolution with non-linear scaling
- Wide resistance range
- On-board calibration memory
- LabVIEW driver included
- VeriStand driver available
- Resistive sensor simulation;
- Pressure sensors, Thermistors, RTDs etc.
- ATE (Automatic Test Equipment)
- HiL testing (Hardware in the Loop)
- Laboratory testing of electronic control units
- Automated calibration and alignment
- Automate manual controls
