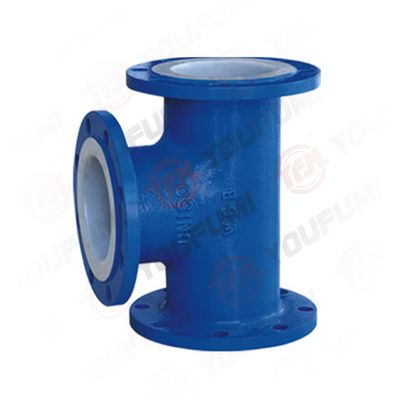

Youfumi - PTFE Lined Tee
Lining Processing Specification: ETFE (F40) Lined Pipe And Fittings By 3D Rotational Molding. Product parameter: Nominal diameter: DN25~DN600, 1”~24”. Temperature range: -29°C~120°C. Applicable medium: Temperature range of -29°C~120°C, and full vacuum condition is applicable for any corrosive medium pipeline.
Most popular related searches
ASTM standard
ASTM testing
pipe fitting
pipe lining
backflow
compression fitting
tensile test
tensile testing
pipeline corrosion
- Youfumi manufactures lined pipe and fittings by compression molding, isostatic molding, injection molding, transfer molding, hot rotomolding, ram/paste extrusion, 3D rotational molding etc. Characters as below:
- Working temperature is high at the range of -29°C-200°C; except the molten alkali metals, element fluorine and aromatic hydrocarbon,
- lined products can be used in any chemical medium.
- Vacuum resistance. In the range of -29°C-150°C, it is applicable for vacuum condition. In chemical production, the vacuum condition occurs due to cooling, longitudinal emissions, or medium backflow.
- High-pressure resistance. Within temperature working condition, it can sustain the working pressure of 3.0MPa.
- Resistance to penetration. Adapt the high-quality PTFE, to make it of high density and enough thickness after advanced lining processing, make it excellent antiosmosis.
- PTFE advanced lining molding process achieved the status of syn chronous hot expansion or cold shrinkage for steel components and fluorine plastic.
- Youfumi adopts the standard size according to HG, GB, DIN, ANSI, and JIS etc., which improves interchangeability, to provide convenience for installation.
- Specific Gravity: 2.14-2.19g/cm3 as per ASTM D 792 test standard.
- Tensile Rate: 20.7Mpa minimum as per ASTM D 638 test standard.
- Elongation Rate: 250% minimum as per ASTM D 638 test standard.
- Manufacture Standard: ASTM D 4895. Operating in vacuum condition within 150°C.
