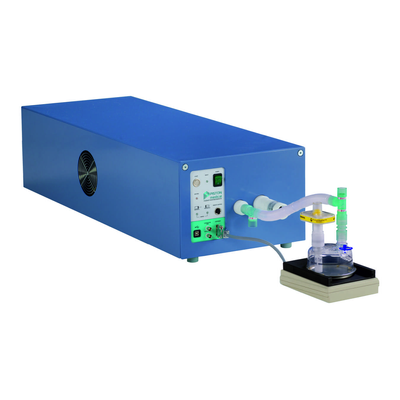

Piston - Model PWG-33 and PWG-33BT -Pulmonary Waveform Generator
FromPiston Medical
Pulmonary waveform generator is the most essential equipment for developing and testing spirometers and other flow/volume measuring devices. PWG-33 is the ideal test equipment for R&D companies, for manufacturers and for authorized test laboratories as well. PWG-33 has incomparable accuracy and fidelity in generating waveforms. PWG-33 provides the highest peakflow with the fastest acceleration it is the real market leader in all aspects. PWG-33BT provides full BTPS simulation for all types of exhaled curves
Most popular related searches
flow monitoring system
flow meter
automatic monitoring
volume flow monitoring system
flow monitoring
volume flow monitoring
laboratory testing
User defined waveforms
- Sinus waveforms
- Square waveforms
- Trapezoid waveforms
- Reproduction of any waveform defined by user
- All parameters of generated waveforms are fully traceable to National Standards
- All generated curves can be proportionally scaled
- Full automatic measurement of flow meter’s resistance
- Full support of human differential tests, according to ATS
- Evaluation of test results and error analysis, according to ATS
- Full automatic test sequence definable by the user
Our Pulmonary Waveform Generators are used by research and developing institutions and manufacturers all over the world
- BTL Medical Technologies (Czech Republic)
- Clement Clark (UK)
- Cyberscope (South Africa)
- Eolys (France)
- HSG-IMIT (Germany)
- IqTeq (South Africa)
- K-jump Health (Taiwan)
- Medical Research & Development (Spain)
- MedPond (USA)
- ORKI Notified Body on Medical Devices (Hungary)
- QRS (USA)
