HAAGE - Pulp Breaker
The HAAGE pulp breakers are used to defiber the pulp for analysis in laboratories of the paper industry as well as for the production of test sheets in the HAAGE sheet formers . The HAAGE impactors comply with leaflet V/4/61 of the Association of Pulp and Paper Chemists and Engineers as well as ISO 5263.

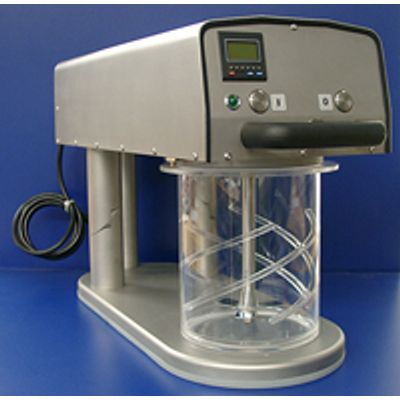

The whipping device consists of an elegant stainless steel stand, the built-in whipping unit with drive motor, shaft and three-blade propeller as well as the round acrylic container (metal container as an option) for holding the pulp suspension.
In the inner surface of the side wall of the container there are 4 spiral-shaped square ribs, which extend over half the circumference of the container in accordance with the standard. The transparent container allows a visual inspection of the impacting suspension during operation. It can be easily inserted and removed. The propeller runs in the geometric axis of the impact container and, like the other components, corresponds to the standard dimensions.
- Connection : 230 V AC, 50 Hz
- Mass : approx. 30 (w) x 91 (h) x 50 (d) cm
- Weight : approx. 40 kg
- Easy cleaning by simply spraying the base plate
- Low-noise, powerful drive with low-voltage motor
- Programmable total revolutions or total time
- Two-line display
- Display of the total speed running
- START / STOP button and additional function key for interruption,
- Optical operating display
- Acrylic glass impact container (3 l capacity), with glued-in ribs
- Safety function – device only works when container is inserted
Combined laboratory pulp whipping device (does not correspond to any current standards) for setting up on a laboratory table, can be aligned using the circular spirit level using adjustable feet.
Device with acrylic attachment, 180 x 180 mm base area, 10 liter capacity, and installed ball valve with hand lever.
The drive shaft with three-bladed propeller is installed above the bottom surface of the container and is driven by a DC motor with two fixed speeds.
| Preselected speed for whipping: | 3,000 rpm |
| Preselected speed for distribution: | 1,000 rpm |
A manually operated ball valve with a connection piece for the water supply is connected to a supply line for filling the container.
Device housing, control cabinet, main components and drive shaft made of stainless steel.
Device connection and electrical control in a separate control box flanged to the device.
Control box with ON / OFF switch, operating display, speed selector switch (1,000 – 0 – 3,000 rpm), and separate “EMERGENCY” stop switch.
- Acrylic container : 180 x 180 x 380 mm
- Capacity : 10 liters
- Motor drive : 250 watts, 24 volts DC
- Device connection : 230 volts, 50 / 60 Hz
- Weight : 33.0 kg
- Dimensions : approx. 350 (W) x 320 (D) x 740 (H) mm
