Memphis Pump & Mfg. Co. Inc

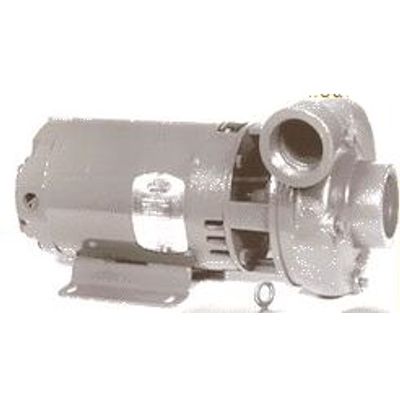

Memphis - Model MPH/MPA -Pump

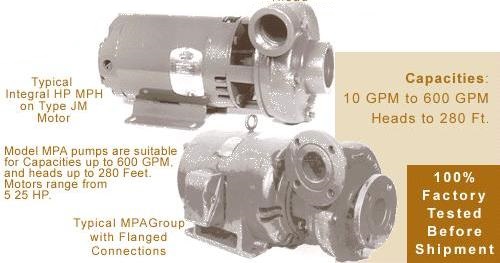

The MPH Series is available in sizes delivering from 10 GPM At 48 ft. (MPH-100-33S powered with 1/3 HP motor) up to 280 GPM at 80 ft. (MPH-200-750T with 7 % HP motor). A pump-motor combination can be selected that will give almost any volume/head configuration required, within the minimum-maximum limits. Model MPA pumps are suitable for Capacities up to 600 GPM, and heads to 280 Feet. Motors range from 5 to 25 HP.
Most popular related searches
close coupled pump
coupled pump
pipe plug
drain vent
pump shaft sleeve
pump seal
discharge protection
drain pump
drain plug
coupling sealing
- Volute Close grained cast iron construction with large suction and discharge ports to prevent cavitation. Volutes have pipe plugs for draining and venting the pump, and can be rotated 90° increments to conform to piping layouts.
- Impeller Enclosed, one piece cast vibration free operation. Mounts directly onto the motor shaft, either by being keyed or threaded.
- Motors All motors are NEMA standard, 56J threaded shaft or JM type close coupled pump motors.
- Shaft Seal Mechanical type face seals, self adjusting for wear, and easily field replaceable.
- Shaft Sleeve Pumps built on type JM close coupled pump motors have bronze sleeves that seal to the shaft with an O-ring. Stainless steel sleeves are also available.
- Materials Available in all iron, bronze fitted, and all bronze.
