Pulstar - Model P8000 -Pump
FromPulstar

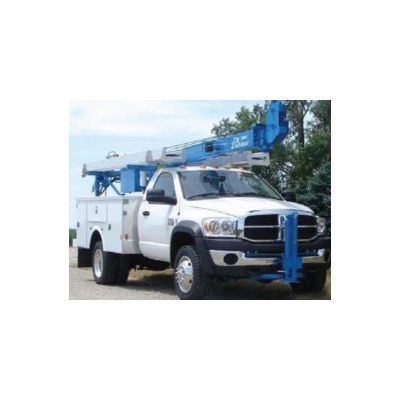

The 8000 Series Pump Hoist consists of a 37 ft. self-supporting telescoping mast held by two 3 1/2` x 48` hydraulic cylinders. Maximum layback is 11 ft. The basic rig consists of 12,000 lb. capacity (4,000 lb. single line, 8,000 double line, 12,000 lb triple line), 175 ft. of 7/16` rotation resistant cable, open swage socket with 7 ton hook, hydraulic outriggers, remote control, and double gear pto with direct mount heavy duty gear pump. Maximum single line speed is 140 fpm. (*Dry weight is 2,650 lbs.)* Basic unit, other options add weight.
Most popular related searches
Standard Features:
- Main winch planetary drive with Mico failsafe brake
- 24 gallon hydraulic reservoir
- In-line cable weights
- 2,000 Series Char Lynn hydraulic motors (for added efficiency)
- Outside left oriented control handles (increased cargo bay storage)
- 60" rear outrigger width
- Failsafe hydraulic braking
- Failsafe over-center hydraulic holding valves in all spool circuits
- Extra high grade urethane paint
- Derrick elevation cylinders load indicator gauge
- Pulstar`s unique 3-part line rigging process (block & hook provided)
P8,000 advantages over competitive models
- 140 fpm line speed
- 4000 lb. single line pull
- 12,000 lb. maximum capacity (with optional guide cable and chain)
- 3 1/2" boom cylinders with 1 1/2" rods
- Simple multi-rigging accomplished in minutes
- Boom cylinders load indicator gauge
- Remote control is standard
