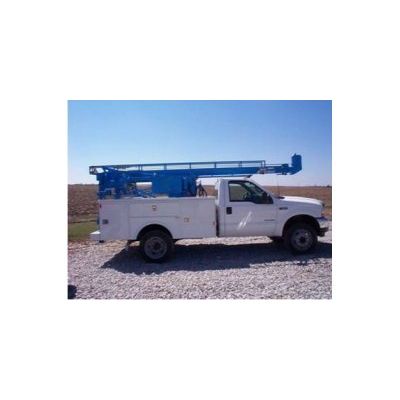

Pulstar - Model P4000 -Pump Hoists

The 4,000 Series Pump Hoist consists of a 32 ft. self-supporting mast held by two 3-1/2` x 48` double acting cylinders. This design eliminates the need for guy cables. Maximum lay-back is 10 ft. The basic rig consists of a 4,000 lb. capacity (2,000 lb. single line), 125 ft. of 3/8` rotation resistant cable, open swage socket with 3 ton hook, mast cylinder holding valves, and double gear pto with direct mount heavy duty gear pump for manual trans. Maximum single line speed is 105 fpm.
