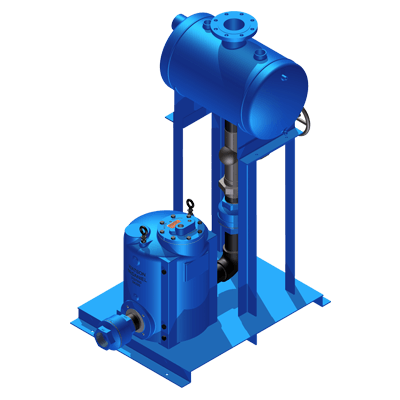

Model S-PMPC-1X1-SS-21 -Pump System
The PMPC series (cast ductile iron pump body material) with a Vented Receiver. Standardized Simplex, Duplex, Triplex, and Quadraplex packaged systems include stand-alone pump(s), check valves and vented receiver, mounted on a steel base and frame. Multiple pumping units can be used for increased capacity or for system redundancy. The PMP units are available in ductile iron, carbon steel and stainless steel. Additional options include sight glasses, insulation jackets, cycle counters, motive and vent piping, pressure regulators, steam traps, strainers, ASME code stamps, etc.
- PMP pump systems reduce installation costs. Only 4 pipe connections are required in the field
- Watson McDaniel ensures that vented receivers and other components are properly sized for optimum system performance
- Watson McDaniel’s fully-qualified fabrication facility is ASME code certified. Our engineers can design and build complete custom systems to meet all your requirements
- Gauge glass assembly
- Cycle counter
- Insulation covers
- Motive steam drip trap
- Overflow pipe connection
- Pressure regulator for motive supply line
Unit shall be a Watson McDaniel, pre-packaged system to include pressure motive pump(s) with stainless steel check valves, an ASME vented receiver with “UM” code stamp, and interconnecting piping including inlet isolation valve. The carbon steel PMPF shall receive an ASME "UM" code stamp and the ductile iron PMPC shall offer it as an option. The pump mechanism shall be float operated with a patented “Snap-Assure” feature constructed of all stainless steel materials with all load bearing points hardened for extended service life, with no external seals or packing.
System: Simplex
Size: 1" x 1"
Max. Operating Pressure (psig): 200
Pump Rating: 250 PSIG @ 650˚F
Receiver Rating: 150 PSIG @ 566˚F
Receiver Size: 21 gal
Material Specification
Pump Body: Ductile Iron
Internals: Stainless Steel
Receiver Body: Carbon Steel
