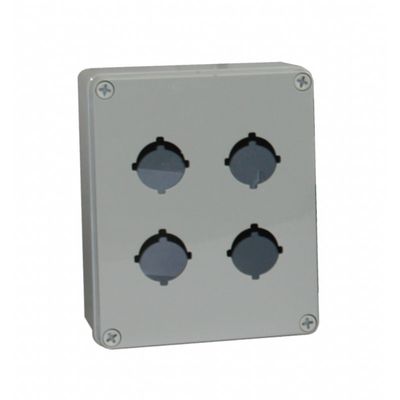

Fibox - Model UL PBPC H 95 G 4 -Push Button Enclosure

Product

• Product nr: 8754315
• Description: 6.7 x 5.5 x 3.7 inch polycarbonate pushbutton enclosure with an opaque cover
• Remarks: Four (4), 30.5 mm pushbutton cut out
• Package: 4
• Unit: Piece
• EAN: 6418074038975
• SSTL number: 3423417
• Electric No. Denmark: 8212031173
• Electric No. Sweden: 2536826
• ETIM: EC000261 Enclosure/Switchgear cabinet (empty)

Dimensions

• Height (inch): 6.7
• Width (inch): 5.5
• Depth (inch): 3.7
• Height (mm): 170
• Width (mm): 140
• Depth (mm): 95

Materials

• Material: Polycarbonate
• Base color: RAL 7035 -light grey
• Cover color: RAL 7035 -light grey
• Gasket material: Polyurethane

Temperatures

• Temperature °F (continuous): -40 … 175
• Temperature °C (continuous): -40 … 80

Ratings

• UL/cUL Type: UL/cUL Type 1, 4, 4X, 6, 12, and 13
• Ingress Protection (EN 60529): IP66 / IP67
• Impact Resistance (EN 62262): IK08
• Electrical insulation: Totally insulated
• Halogen free (DIN/VDE 0472, Part 815): Yes
• UV resistance: UL 508
• Flammability Rating: UL 746C 5"
• Glow Wire Test (IEC 60695): 960 °C
